Used Jib Cranes

IMAGE ALT TAG GOES HERE

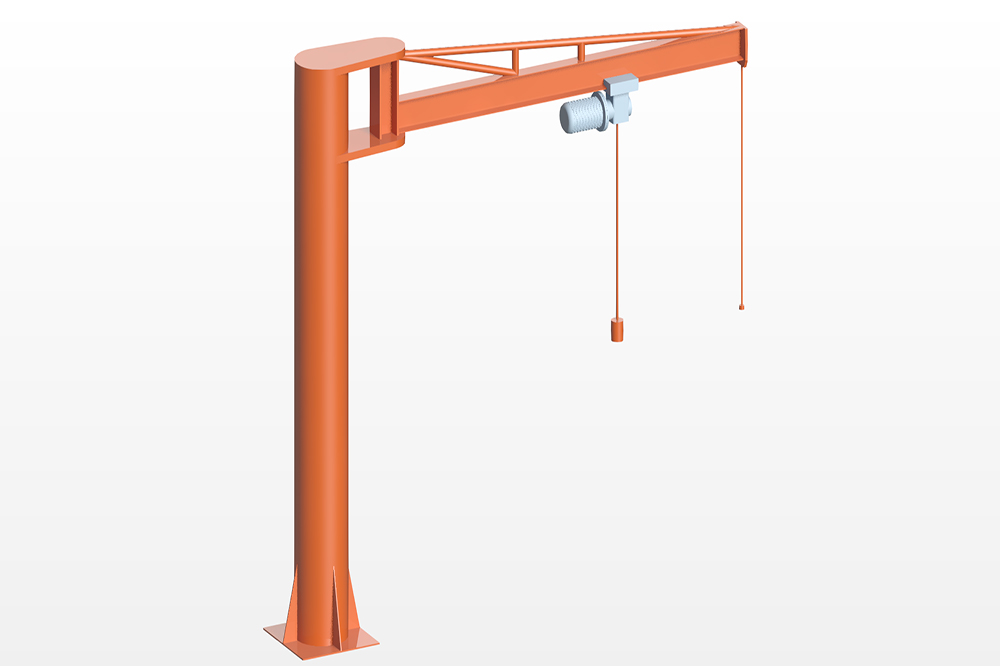

Used Jib Cranes for Sale

  • Ideal for assembly, welding, and general duty jobs around a warehouse.
  • Self-supported with 360° rotation, includes steel mounted beams for mounting hoists and vacuum lifts.
  • Easy to install and require less maintenance than larger beams.
  • Designed with the ability to preform lifting tasks that would otherwise be impossible.
  • Capacities up to 6,000 lbs.
  • ASI pays top dollar for used jib cranes: Learn More About Our Purchasing Program

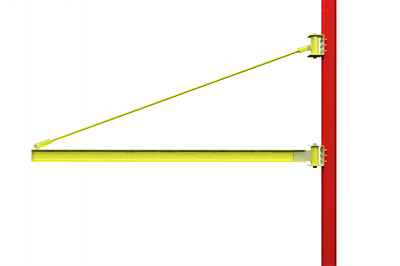

Used Overbrace Tie-Rod Style Jib Cranes
Used Overbrace Tie-Rod Style Jib Cranes
  • Safely lift heavy loads
  • Simple, durable construction
  • Great for shop floors & in production lines
Details
* This product contains multiple skus. Please view product details to add to cart.

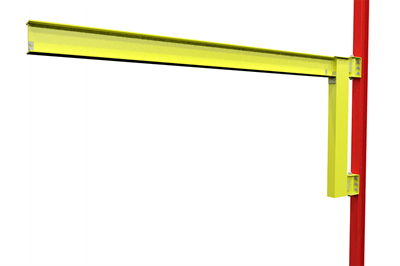

Used Underbraced Bolt-On Style Jib Crane
Used Underbraced Bolt-On Style Jib Crane
  • Simple Design For Low Maintenance Performance
  • 180 Degree Swing For Stationary Use
  • Mounts To Existing I-Beam
Details
Used Free Standing Jib Crane - 84" High
Used Free Standing Jib Crane - 84" High
  • 360 Degree Swing
  • 1/4 Ton Capacity
  • Approx. 84" High
  • Out of Stock
Details
Used Free Standing Jib Crane - 111" High
Used Free Standing Jib Crane - 111" High
  • 360 Degree Swing
  • 1/2 Ton Capacity
  • Approx. 111" High
  • Out of Stock
Details
Used Free Standing Jib Crane - 120" High
Used Free Standing Jib Crane - 120" High
  • 360 Degree Swing
  • 1/2 Ton Capacity
  • Approx. 120" High
  • Out of Stock
Details
Used Free Standing Jib Crane - 145" High
Used Free Standing Jib Crane - 145" High
  • 360 Degree Swing
  • 1/2 Ton Capacity
  • Approx. 145" High
  • Out of Stock
Details

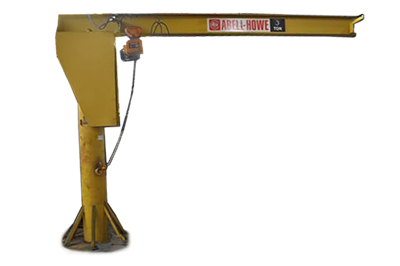

Used Abell Howe Jib Crane
Used Abell Howe Jib Crane
  • 6,000 lb. capacity
  • 7' Span
  • 12'-10" Tall
  • Out of Stock
Details

Available Combo Deals

We Buy Used Warehouse Equipment

Are you moving or liquidating your facility and looking to sell your used warehouse equipment or material? American Surplus Inc. can help! American Surplus Inc. offers a purchasing program for new and used warehouse and material handling equipment. Learn more about our purchasing program online or call our sales office at (800) 876-3736 to get started.

Learn More

About Jib Cranes

A jib crane, also known as a jib arm crane or a swing arm crane, is a type of mechanical device used to lift and move heavy loads in various industries and construction sites. It is named after the horizontal jib or arm that extends from a fixed vertical mast or support structure. Jib cranes are known for their versatility, compact size, and ability to provide precise lifting and positioning of loads.

The primary components of a jib crane include the following:

  • Mast or Support Structure: This is the vertical component that provides stability and support to the jib crane. It is securely anchored to the ground or a structural foundation.
  • Jib or Arm: The jib is the horizontal extension of the crane, typically made of steel or other robust materials. It pivots on the mast, allowing the arm to rotate horizontally.
  • Slewing Unit: The slewing unit enables the jib arm to rotate horizontally, providing a wide range of motion. It consists of gears, motors, and bearings that allow smooth and controlled rotation.
  • Lifting Mechanism: The lifting mechanism is responsible for raising and lowering the loads. It can be powered by electric, hydraulic, or manual systems, depending on the crane's design and application. The lifting mechanism often includes a hoist or winch, which is attached to the jib arm and equipped with a hook or other load attachment devices.

Jib cranes are available in various configurations to meet specific lifting requirements. Some common types of jib cranes include:

  • Wall-Mounted Jib Crane: These cranes are mounted to walls or vertical structures, utilizing the existing infrastructure. They are ideal for areas with limited floor space, as they do not require additional support.
  • Floor-Mounted Jib Crane: These cranes are freestanding and secured to the floor using bolts or anchors. They provide 360-degree rotation and can cover larger areas.
  • Articulating Jib Crane: This type of jib crane consists of multiple arms connected by hinges or pivots, allowing for increased flexibility and reach in confined spaces.
  • Pillar-Mounted Jib Crane: Also known as column-mounted jib cranes, they are supported by a vertical pillar or column. These cranes are suitable for outdoor applications and can be easily installed.

Jib cranes find applications in various industries, including manufacturing, warehouses, construction sites, shipyards, and automotive facilities. They are used to lift and transport heavy objects such as machinery, equipment, containers, and raw materials. Jib cranes are known for their efficiency, as they enable precise positioning of loads and reduce the need for manual labor.

Advantages of Jib Cranes

Jib cranes offer quite a few advantages that make them popular in various industries. Here are some key gains of using jib cranes:

  • Versatility: Jib cranes are versatile lifting solutions that can be customized to suit specific application requirements. They come in various configurations, sizes, and load capacities, allowing them to handle a wide range of loads, from small components to heavy machinery.
  • Compact Design: Jib cranes have a compact design, making them suitable for areas with limited space. They can be mounted on walls, floors, or columns, which helps maximize the available workspace without obstructing other operations or equipment.
  • 360-Degree Rotation: Jib cranes offer full 360-degree rotation, allowing for easy and precise load positioning. This feature enables operators to reach different work areas without the need for extensive repositioning, saving time and effort.
  • Improved Efficiency: By providing efficient lifting and positioning capabilities, jib cranes help improve workflow and productivity. They reduce manual labor requirements, minimize the risk of accidents or injuries associated with heavy lifting, and enable faster material handling operations.
  • Flexibility and Accessibility: Jib cranes offer excellent maneuverability, enabling access to hard-to-reach areas within a workspace. Their ability to extend horizontally and vertically, coupled with the rotational movement, ensures that loads can be easily picked up, moved, and placed precisely where needed.
  • Cost-Effective: Compared to larger overhead crane systems, jib cranes are generally more cost-effective to install and maintain. They require less structural support, have lower installation costs, and their modular design allows for easy adaptation to changing needs or relocation.
  • Increased Safety: Jib cranes enhance workplace safety by reducing the risk of accidents associated with manual lifting and handling of heavy loads. They are designed with safety features such as limit switches, overload protection, and emergency stop controls, ensuring safe and controlled operations.
  • Quick Installation: Jib cranes are relatively quick and easy to install compared to more complex crane systems. They can often be installed without significant modifications to existing structures, minimizing downtime and disruption to operations.
  • Minimal Operator Training: Operating a jib crane typically requires minimal training. The controls are user-friendly and intuitive, allowing operators to quickly become proficient in using the crane effectively and safely.
  • Durability and Reliability: Jib cranes are built to withstand heavy use and harsh working environments. They are constructed from sturdy materials such as steel, providing long-lasting durability and reliable performance.

Jib Cranes Applications

Jib cranes find frequent applications across various industries due to their versatility and ability to handle a wide range of loads. Here are some common applications of jib cranes:

  • Manufacturing Facilities: Jib cranes are extensively used in manufacturing plants for tasks such as lifting and moving heavy machinery, components, and raw materials. They facilitate efficient assembly, disassembly, and maintenance operations.
  • Warehouses and Distribution Centers: Jib cranes are employed in warehouses and distribution centers for loading and unloading goods from trucks, organizing storage areas, and moving pallets or containers. They enhance material handling efficiency and streamline logistics operations.
  • Construction Sites: Jib cranes are utilized in construction sites for lifting and positioning construction materials, such as steel beams, concrete blocks, and equipment. They enable precise and controlled placement of heavy loads in various areas of the construction site.
  • Automotive Industry: Jib cranes are commonly found in automotive manufacturing plants for lifting and installing large automobile components, engines, and body parts during the assembly process. They aid in reducing manual labor and improving productivity.
  • Shipbuilding and Ports: Jib cranes play a crucial role in shipyards and ports for loading and unloading cargo onto ships. They are utilized for handling containers, heavy machinery, and equipment, streamlining operations, and ensuring efficient cargo handling.
  • Foundries and Metalworking: Jib cranes are used in foundries and metalworking facilities to lift and move molten metal, molds, and heavy metalwork pieces. They provide safe and precise material handling in these high-temperature environments.
  • Aerospace Industry: Jib cranes are employed in the aerospace industry for assembling and maintaining aircraft components. They help lift and position aircraft engines, wings, fuselage sections, and other large aircraft parts during manufacturing or maintenance processes.
  • Power Plants: Jib cranes are utilized in power plants for lifting and positioning heavy equipment, such as turbines, generators, and transformers. They aid in the installation, maintenance, and repair of power generation and distribution infrastructure.
  • Waste Management Facilities: Jib cranes are used in waste management facilities for handling large waste containers and bins. They assist in efficiently loading waste onto trucks for disposal or sorting materials for recycling.

Jib Cranes Manufacturers

  • Gorbel Inc.
  • Spanco Inc.
  • ABUS Crane Systems
  • Wallace Cranes
  • Vestil Manufacturing Corporation
  • Columbus McKinnon Corporation
  • Abell-Howe Jib Cranes
  • O'Brien Lifting Solutions Inc.
  • GORBEL Gantry Cranes

Jib Cranes are Also Known As

  • Swing Arm Crane
  • Swing Jib Crane
  • Cantilever Crane
  • Slewing Jib Crane
  • Articulated Jib Crane
  • Wall-Mounted Crane
  • Pillar-Mounted Crane
  • Column-Mounted Crane
  • Floor-Mounted Crane
  • Free Standing Jib Crane
  • Wall Bracket Crane
  • Foundationless Jib Crane
  • Articulating Arm Crane
  • Rotary Crane
  • Balance Crane

Jib Cranes Frequently Asked Questions

Q: What is a jib crane?
A: A jib crane is a mechanical device used for lifting and moving heavy loads. It consists of a horizontal arm (jib) that extends from a vertical mast or support structure, allowing for rotation and precise positioning of the load.

Q: What are the main types of jib cranes?
A: The main types of jib cranes include wall-mounted jib cranes, floor-mounted jib cranes, pillar-mounted (or column-mounted) jib cranes, and articulating jib cranes. Each type has specific advantages and is suitable for different applications and space constraints.

Q: What are the advantages of using a jib crane?
A: Some advantages of using jib cranes include their versatility, compact design, 360-degree rotation capability, improved efficiency, flexibility, cost-effectiveness, increased safety, quick installation, and durability.

Q: What are the common applications of jib cranes?
A: Jib cranes are widely used in industries such as manufacturing, warehouses, construction, automotive, shipbuilding, foundries, power plants, waste management, and more. They are used for tasks such as lifting and moving heavy machinery, components, materials, and cargo.

Q: How are jib cranes operated?
A: Jib cranes can be operated using various control methods, depending on their design and features. Common control options include push-button pendant controls, radio remote controls, or even automated controls in advanced systems. The operator controls the lifting, lowering, and slewing motions of the crane to perform the desired tasks.

Q: What load capacities are available for jib cranes?
A: Jib cranes come in a wide range of load capacities, from light-duty options that can handle a few hundred kilograms to heavy-duty cranes that can lift several tons. The load capacity of a jib crane depends on factors such as the design, size, and structural strength of the crane.
