Used Pallet Flow Rack

Pallet flow rack, sometimes called dynamic flow or gravity flow, is a high-density pallet storage system. It utilizes slightly inclined rails and skate wheels in combination with the force of gravity in order to create a dynamic system for maintaining and storing inventory. Pallets are loaded from the back of the racking via forklift and gravity drives them to the front of the system where they can then be unloaded.

When the pallet in the first position is removed, the next pallets automatically slide forward without the need for any additional equipment. Pallet flow rack utilizes the first in, first out (FIFO) method of storage and is ideal for warehouses with quick-moving inventory or when dealing with anything perishable.

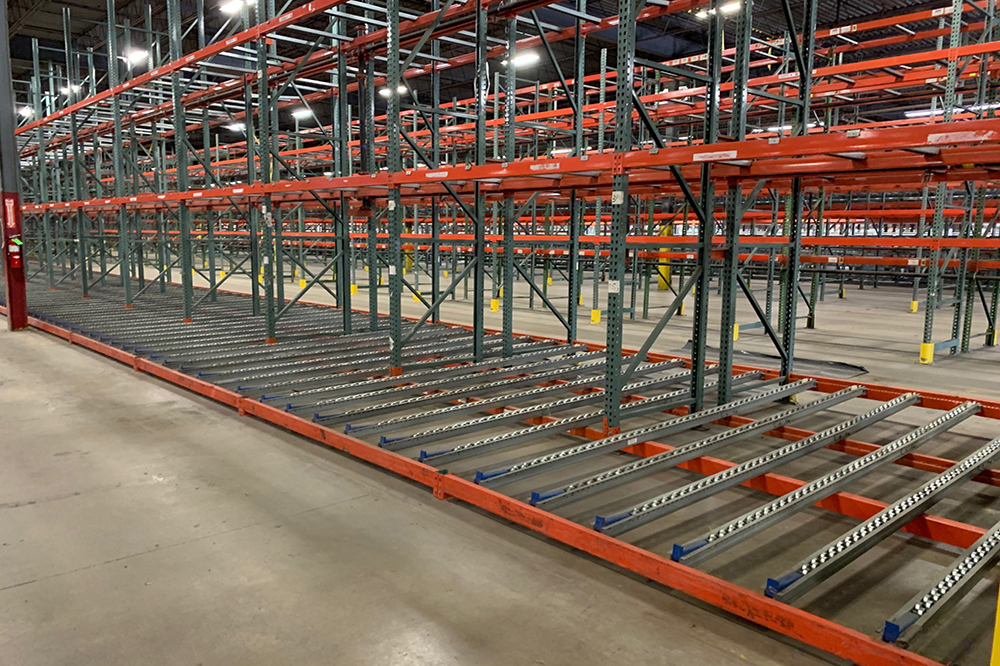

Used Dual Wheel Staggered Pallet Flow Rails
Used Dual Wheel Staggered Pallet Flow Rails
  • Compatible with Used Pallet Flow Rack
  • 1.5" Staggered Centers
  • 3.5" Frames
Details
Used Logitech Pallet Flow Rails
Used Logitech Pallet Flow Rails
  • 2900 Outside Rollers
  • 100" long, 2.5" high channel
  • Staggered Nylon Wheel 4.6875" wide
Details

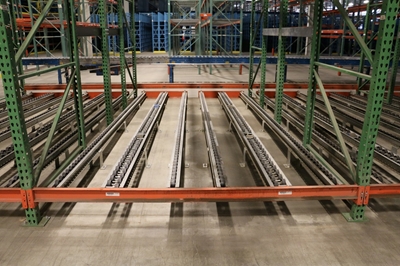

Used Pallet Flow Rack
Used Pallet Flow Rack
  • FIFO (First In, First Out)
  • 2 to 10 Deep Pallet Flow
  • Improve your inventory process
Details

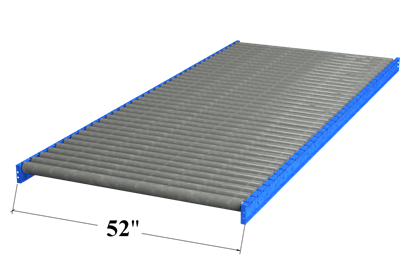

Used Pallet Flow Rollers
Used Pallet Flow Rollers
  • 1.9" rollers on 3" centers
  • Floor Applications
  • Heavy Duty
Details
Used Poly Wheel Pallet Flow Rails
Used Poly Wheel Pallet Flow Rails
  • 2-3 Strand Systems
  • Built in Break System
  • Medium Pallet Weight Application
Details
Used Single Wheel Pallet Flow Rails
Used Single Wheel Pallet Flow Rails
  • 2 or 3" Wheel Centers
  • 2.5 - 3.5" Frames
  • Lighter Pallet Weight Application
Details

Available Combo Deals

Designed to reduce the number of aisles needed to access inventory, pallet flow rack uses lanes of wheels called flow rails to store product as many as 15 pallets deep. Flow speed is controlled by breaks installed at various intervals in order to prevent pallets from jostling around and greatly reducing the likelihood of product damage. Pallet stops at the head of each aisle gently bring pallets to rest once they reach the unloading position.

It is recommended that like-products or those with similar weights are stored together in order to most efficiently design braking systems based on weight to ensure safety and reduce the possibility of damaging any goods.

A pallet flow racking system makes any warehouse more efficient by increasing storage area, decreasing the need for additional time or labor to move product, and adds organization by creating two dedicated aisles of traffic to remove confusion. One aisle of traffic can be specifically dedicated to loading, while the other is used solely for unloading. This allows for greater proficiency with forklifts and reduces fuel costs, required labor, and opportunity for mistakes while increasing storage and worker efficiency.

Pallet flow rails are available in single-, double-, or triple-wheel applications. Single-wheel rails are designed to be used for lightweight pallet storage. Double-wheel rails are appropriate for regular duty and triple-wheel rails are ideal for heavy duty pallet applications. Skate wheel rails are the most cost effective and most versatile option for pallet flow rack; however, for low temperature environments or  extra deep or extremely heavy duty pallet storage, rollers may be a better option as they are more durable, with weight limits exceeding 3,000 pounds.

Pallet flow rack is similar to push back pallet rack in that they both utilize gravity and storage depth for added density. Pallets ride on flow rails, and typically product is loaded from the back, which then rolls to the front, where it is unloaded, whereas push back pallet rack is loaded from the front of the system and is more likely to utilize a last in, first out (LIFO) method of inventory control.

American Surplus is here to help you determine the best system and best design for your warehouse storage needs. We have products from numerous manufacturers of pallet flow rack available such as Kenenco, Unex, Quick-Pik and Hytrol and our trained, experienced technicians travel nationwide to assess your needs and to install the system we help you design.

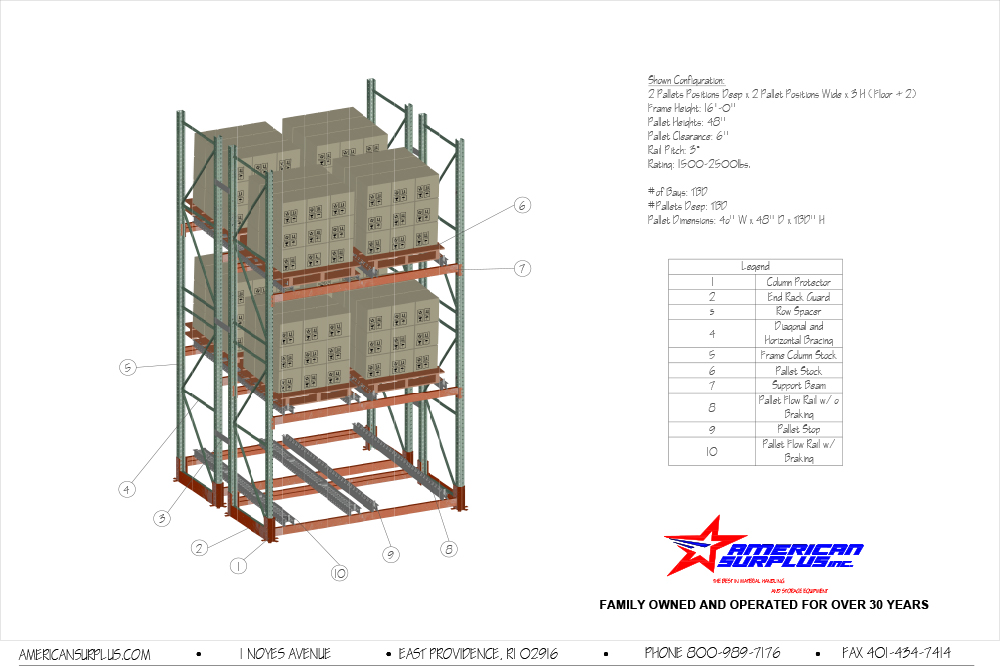

American Surplus Inc. even offers full CAD service to provide our customers with the ability to fully realize their new storage solution before installation begins, and our high-quality used pallet flow rack helps you save thousands at the same time.

Why buy used pallet flow rack? Pallet rack is expensive, and significant savings can be achieved by purchasing used pallet flow rack instead of new. The only real difference between new and used pallet flow rack is cosmetic damage.

All used pallet racking from ASI is in great working condition, and has been tested and inspected for damage that would compromise the structure’s durability or workers' safety. This ensures that you get both the best value and the best quality. Give us a call today for a quote on used pallet flow rack.
