Used Dock Boards

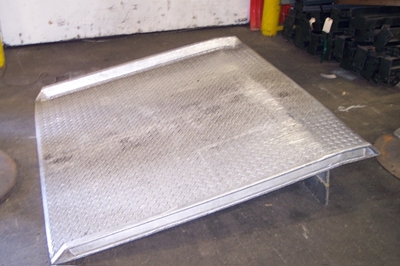

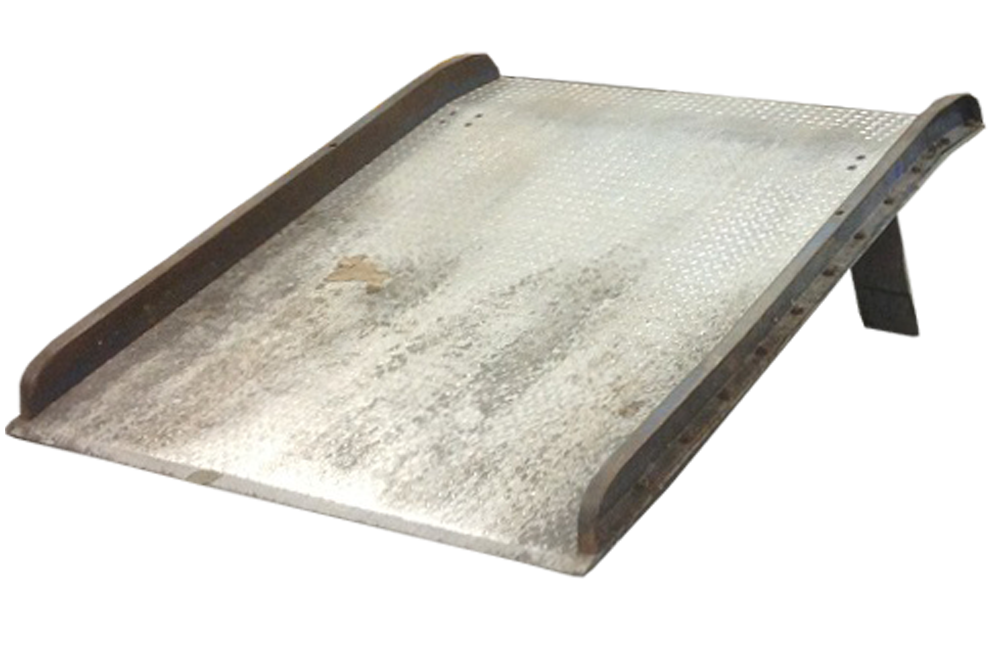

Used dock boards bridge the gap between the loading dock edge and the trailer. They are shaped like dock plates, but have additional structural support to handle more weight. Used dock boards are ideal for transporting heavier loads that require a forklift to move out of the trailer. The diamond pattern flooring prevents wheels from slipping while traveling at an incline. ASI’s used dock boards have t-bar legs extending down between the truck and dock, along with curbs on the sides to prevent product from falling off.

Used Dock Boards
Used Dock Boards
  • Designed for Forklift Use
  • Click for current inventory
  • Bridge gap b/w dock & trailer
Details

Available Combo Deals

Choosing the right dock equipment to provide you with accurate solutions. The main aspects to consider when choosing used dock equipment is capacity, width, and length.

Capacity is the most important factor to consider when deciding between a used dock plate or dock board. The first question to consider is whether or not you will be using lift equipment to transport product out of the truck. This will automatically require a dock board due to capacity requirements and the need for side guard rails. To decide which capacity of dock board is required, add together the weight of the lift equipment and the maximum load weight of that equipment. So if your forklift weighs 7,000 lbs. and has a 4,000 lbs. capacity, you should consider a board that holds at least 11,000 lbs.

In manual applications, the width of the used dock plate or dock board should be at least 8'' inches wider than the overall width of the equipment. For powered operations, the width should be at least 16'' wider than the overall width of the equipment.

The proper length is determined by the height difference between the loading dock and the floor of the truck. This equipment has a maximum height differential, so a longer board can accommodate a greater range of height differences. Exceeding this angle will potentially dislodge the safety leg holding it in place, allowing it to shift and become unstable.
