What Is Cantilever Rack?

At its core, a cantilever rack is a storage system composed of vertical upright columns, horizontal arms that extend from those columns, and structural bracing that ties the assembly together for stability. The term "cantilever" refers to the engineering principle of a rigid structural element anchored at only one end, allowing the free end to extend and bear load — exactly how the arms of a cantilever rack function.

The vertical columns of a cantilever racking system are typically constructed from heavy-gauge steel and feature a series of spaced slots or notches along their front face. These slots accept the arm connectors, which lock the arms securely into place at whatever height you need. The arms themselves are formed from rolled steel channels or C-channels that provide exceptional strength-to-weight ratio while resisting bending under heavy loads.

What sets cantilever rack apart from other warehouse storage solutions is its completely open front. There are no vertical obstructions between the arms, meaning any item — regardless of length, width, or shape — can be slid directly onto the arms without the spatial constraints imposed by the uprights and crossbeams of conventional pallet racking. This makes cantilever racking the go-to choice for storing materials that would be impossible or highly inefficient to store on standard shelving or pallet racks.

How Cantilever Racking Systems Work

Understanding how cantilever racking works begins with grasping the load path. When material is placed on a cantilever arm, the weight transfers through the arm connector into the upright column, then down through the base plate and into the floor via anchor bolts. The structural bracing — typically located on the back of the column or between paired columns — resists the lateral forces created by the cantilevered load, preventing the upright from tipping forward under weight.

The design of a cantilever racking system allows arms to be positioned at virtually any height along the column. This adjustability means you can customize the vertical spacing to match the exact dimensions of the materials you store. Need a 10-foot clearance on one level and a 3-foot clearance on the next? Cantilever racking handles that without any special components or modifications. Simply remove the arm connectors, reposition the arms, and re-lock them into place.

Load capacity is determined by several factors working together: the gauge and height of the upright column, the depth and thickness of the arms, the spacing between arms, the distance between column bases, and the type and density of the material being stored. Manufacturers rate each cantilever rack component for a specific load capacity per arm and per pair of arms, and these ratings must be carefully considered when planning your storage configuration to ensure safe and compliant operation.

When loading cantilever rack, best practice dictates that the heaviest items go on the lowest arms and that material weight be distributed evenly across each arm. Overloading any single arm beyond its rated capacity not only creates a safety hazard but can also cause permanent deformation of the arm or damage to the column connector points. Always consult the manufacturer's load chart for your specific cantilever rack model and never exceed the stated capacity, even if the load appears to sit securely.

Key Benefits of Cantilever Racking

Cantilever racking systems offer a suite of advantages that make them the preferred storage solution for countless industrial operations. Here are the primary benefits that set cantilever rack apart from alternative storage methods:

Complete accessibility to stored materials. The open-front design of cantilever racking means every item stored on the arms is fully accessible from the aisle. There is no need to shift or remove other materials to reach what is stored behind them, which dramatically speeds up picking and restocking operations. This level of accessibility is something that dense-storage systems simply cannot match.

Ideal for long and irregular materials. If your inventory includes items that exceed standard pallet dimensions or cannot be safely stacked on a pallet, cantilever rack is purpose-built for that use case. Lumber, steel pipe, PVC conduit, aluminum extrusions, fiberglass profiles, rolls of wire mesh, and construction materials all fit naturally on cantilever arms without requiring special cradles, containers, or palletization.

Flexible configuration and expansion. Cantilever racking systems are modular by design. You can add or remove arms to adjust for different material lengths, reconfigure bay heights as your inventory changes, and expand your storage footprint by linking additional upright pairs together. Many facilities start with a small cantilever rack installation and add bays over time as storage demands grow, making it a cost-effective solution that scales with your business.

Maximized vertical storage space. By extending storage upward into the clear space above your warehouse floor, cantilever racking dramatically increases your storage density without expanding your facility's footprint. Multi-tier cantilever systems with mezzanine walkways and forklift access can multiply your storage capacity by three or four times compared to single-level floor-standing configurations.

Reduced product damage. Because materials are stored on open arms rather than stacked in tight rows, there is far less risk of items being damaged by adjacent loads. Items stored on cantilever arms do not bear the weight of other products above them, eliminating the crushing and compression damage that can occur in conventional stacked storage. This is especially important for materials that are easily scratched, bent, or dented during storage.

Improved inventory organization and visibility. With cantilever racking, each material type can be assigned to specific arms or bays, making it easy to organize inventory by size, grade, supplier, or project. The open design also makes it simple to visually inspect stored materials for corrosion, damage, or condition changes without needing to move other items out of the way.

Types of Cantilever Racks

Cantilever racking is not a one-size-fits-all solution. Different configurations and designs serve different storage needs, and selecting the right type of cantilever rack for your application is critical to maximizing both storage efficiency and operational safety. The primary categories of cantilever rack fall into two groups: single-sided and double-sided uprights, along with several sub-types based on arm design and column construction.

Single-sided cantilever rack. Single-sided cantilever uprights are designed to have arms on only one side and are typically placed against walls, existing racking rows, or other immovable structures. The back of the upright is braced against the supporting surface, which provides the lateral stability that the missing opposing arms would normally provide. Single-sided cantilever rack is ideal for facilities that want to utilize perimeter wall space or that need to create storage partitions within a larger open area.

Double-sided cantilever rack. Double-sided cantilever uprights have arms extending from both the front and back faces of the column, with materials stored on both sides of the upright. This configuration is the most common in warehouse and industrial settings because it doubles the storage capacity of each upright pair while using the same floor footprint. Double-sided cantilever racking requires aisle access to both sides of the upright, and the arms on each side are typically loaded independently with material types that may differ from one side to the other.

Heavy-duty cantilever rack. Heavy-duty cantilever systems are built with thicker-gauge columns, deeper arms, and more robust bracing to accommodate extremely dense and heavy materials such as steel plate, structural beam, and large-diameter pipe. Heavy-duty cantilever rack often features column heights of 16 feet or more and arm capacities that range from 3,000 to over 10,000 pounds per pair of arms, depending on the model and arm depth.

Light-duty cantilever rack. Light-duty cantilever systems are designed for lower-weight materials and typically feature shorter columns, lighter-gauge arms, and lower per-arm load ratings. These systems are common in machine shops, fabrication facilities, and smaller warehouses that store items such as small-diameter tubing, plastic profiles, wood trim, and hardware components. Light-duty cantilever rack is also more affordable upfront and easier to install and reconfigure than heavy-duty systems.

Welded vs. structural cantilever columns. Some cantilever columns are welded from multiple steel plates to form a rigid, fixed-profile column, while others are built from structural steel sections (such as wide-flange beams or square tubing) that offer high load capacity with modular arm attachment points. Welded cantilever columns tend to be more affordable and are common in light- to medium-duty applications. Structural cantilever columns provide higher load ratings and greater flexibility for arm repositioning but come at a higher cost.

Cantilever Rack Specifications & Capacity

When evaluating cantilever racking systems, understanding the key specifications and how they relate to load capacity is essential for selecting a system that meets your storage requirements safely and efficiently. Cantilever rack specifications vary widely depending on the manufacturer, the intended load class, and the construction materials used.

Column height. Cantilever rack columns are available in a range of standard heights, typically from 8 feet to 24 feet or more. The column height determines how high your stored materials can be positioned and directly impacts the system's overall load capacity — taller columns have lower load ratings at equivalent arm depths because the cantilevered load creates greater leverage and bending stress on the column base. Match your column height to your warehouse's clear ceiling height and your material dimensions for optimal storage density.

Arm depth. Arm depth is one of the most critical cantilever rack specifications because it directly affects both load capacity and the type of materials you can store. Deeper arms can support more material length but have significantly reduced load capacity compared to shallower arms of the same column height. Common arm depths range from 12 inches for light-duty applications to 48 inches or more for heavy-duty storage. As arm depth increases, the load capacity per arm decreases non-linearly due to the physics of cantilevered bending moments.

Load capacity per arm. Every cantilever rack arm has a rated load capacity that specifies the maximum uniform load it can safely support. Capacity is typically expressed in pounds per arm and per pair of arms. Light-duty cantilever arms may be rated for 500 to 1,500 pounds per pair, medium-duty arms for 1,500 to 3,000 pounds per pair, and heavy-duty arms for 3,000 to over 10,000 pounds per pair. These ratings assume the load is evenly distributed across the full length of the arm and that the column height, arm depth, and base spacing match the conditions under which the rating was established.

Column base width and arm spacing. The distance between the column base anchors (also called the base spread) influences the system's resistance to tipping forces. Wider bases provide greater stability and higher load capacity but require more floor space. Arm spacing — the vertical distance between arms on a column — should be set to accommodate your longest material profiles while leaving enough clearance for safe loading and unloading with your material-handling equipment.

Material and construction. Cantilever rack columns and arms are typically constructed from cold-rolled steel. The gauge (thickness) of the steel and the profile of the column cross-section determine the structural integrity of the upright. Industrial-grade cantilever rack columns often feature a roll-formed profile with reinforced corners and pre-punched arm connector slots that are precision-spaced for consistent arm placement.

Always work with a qualified rack supplier or engineer when determining the specifications for your cantilever racking system. They can help you select the right column height, arm depth, base width, and bracing configuration for your specific materials and load requirements, ensuring your investment delivers safe, reliable performance for years to come.

What Can You Store on a Cantilever Rack?

One of the greatest strengths of cantilever rack is its remarkable versatility. The open-arm design accommodates an extraordinary range of materials and product types across virtually every industry that handles long, bulky, or irregular inventory. Here are the most common categories of materials stored on cantilever racking systems:

Lumber and wood products. Dimensional lumber, plywood sheets, hardwood planks, MDF boards, timber beams, and other wood products are among the most common items stored on cantilever rack. The open arms allow individual boards and bundles to be accessed without disturbing adjacent materials, and the adjustable arm heights accommodate everything from thin trim to massive structural timbers.

Steel pipe and tubing. Carbon steel pipe, stainless steel tubing, aluminum tube, and structural hollow sections are routinely stored on heavy-duty cantilever racking. The arms support the full length of each pipe or tube without the need for cradles or supports along the way, preventing the bending and deformation that can occur when long pipe sections are stored on inadequate racking systems.

Plastic and PVC profiles. PVC conduit, plastic pipe, extruded plastic profiles, and fiberglass materials are delicate items that benefit enormously from cantilever storage. The open arms prevent the compression and stress points that can warp or deform these materials, and the ability to adjust arm heights means even unusually shaped plastic profiles can be stored securely.

Metal stock and structural materials. Steel plate, angle iron, channel steel, I-beams, rebar, wire rod, and other metal stock items are heavy, dense, and often very long — making cantilever rack the only practical storage option. Heavy-duty cantilever racking systems are specifically engineered to handle the extreme weights of metal stock with column heights of 16 to 20 feet and arm capacities exceeding 6,000 pounds per pair.

Rolls and coils. Rolled materials such as wire mesh, fabric, roofing membranes, insulation batts, and metal coils can be stored on cantilever arms when equipped with appropriate roll cradles or arms with anti-roll lips. The arms support the roll along its axis, preventing the crushing that would occur if the rolls were stacked on top of one another on flat shelving.

Construction and building materials. Window frames, door frames, guttering, downspouts, fencing materials, railing components, and other long building products all fit naturally on cantilever rack. Building supply yards and lumber dealers rely heavily on cantilever racking systems because they can organize hundreds of different product profiles in a compact, accessible layout.

Industrial components and fabricated parts. Machine parts, fabricated assemblies, welded frames, conveyor components, and other custom-fabricated items that are too long or irregular for conventional shelving are frequently stored on cantilever arms. The adjustable arm spacing allows you to create custom storage zones for each unique part number or project.

Cantilever Rack for Industrial & Warehouse Use

Cantilever racking systems serve a broad spectrum of industries, each with unique storage requirements that make cantilever rack the ideal solution. Here is how different sectors leverage cantilever racking to improve their storage operations:

Manufacturing. Manufacturing facilities use cantilever rack to store raw materials (steel bar, tube, plate), work-in-progress components, and finished goods that are too long or irregular for pallet-based storage. In metal fabrication shops, cantilever racking organizes hundreds of different steel profiles by grade, size, and supplier, making it quick for floor workers to locate and retrieve the exact material needed for each job.

Construction and building supply. Lumber yards, building supply centers, and construction material distributors depend on cantilever racking as their primary storage system. The ability to store everything from small trim pieces to massive structural beams in the same facility — organized by material type and size — makes cantilever rack indispensable for businesses that serve the construction trade.

Distribution and warehousing. Wholesale distributors of long materials use cantilever racking to maximize storage density in their warehouses while maintaining fast order-picking speeds. The open-front design allows forklift operators to access any item without moving other products, which is critical for facilities that process hundreds of orders per day across a wide product catalog.

Oil, gas, and energy. Companies in the oil and gas sector store drill pipe, casing, tubing, and other large-diameter pipe on heavy-duty cantilever racking systems. The arms support the full length of each pipe section, preventing deformation and making it easy to identify and retrieve specific pipe sizes and grades when needed for field operations.

Marine and shipbuilding. Shipyards and marine fabrication facilities store long steel sections, masts, rigging hardware, and hull components on cantilever rack. The ability to store materials horizontally without support along their length prevents sagging and keeps long structural components straight and ready for fabrication.

Recycling and scrap metal. Scrap yards and recycling facilities use cantilever racking to sort and store different grades and types of metal by material class. The heavy-duty construction of industrial cantilever rack handles the extreme weights of scrap metal, and the open design makes it easy to visually sort and access different metal categories.

Agriculture and agricultural equipment. Farm supply distributors store irrigation pipe, fencing materials, greenhouse components, and agricultural profiles on cantilever racking systems. The adjustable arms accommodate everything from narrow fence posts to wide-diameter irrigation tubing in a single storage system.

How to Choose the Right Cantilever Racking System

Selecting the right cantilever racking system for your facility requires careful consideration of your current storage needs, your anticipated growth, and the specific characteristics of the materials you store. Here is a practical guide to help you make the right choice:

1. Analyze your material dimensions. Start by measuring the longest, widest, and heaviest items you need to store. Your longest material dimension determines the minimum arm depth you need, while your heaviest items determine the load class (light, medium, or heavy duty) of cantilever rack required. If you store a wide range of material sizes, choose a system with fully adjustable arm heights to maximize flexibility.

2. Determine your load capacity requirements. Calculate the maximum weight that will rest on any single arm in your system. Remember that load capacity decreases as arm depth increases and as column height increases. If your materials are dense and heavy — such as steel pipe or structural beam — you will need heavy-duty cantilever rack with deep arms and substantial column bracing. For lighter materials like PVC or aluminum, medium-duty or light-duty cantilever rack will be more cost-effective.

3. Evaluate your warehouse layout and ceiling height. Measure your available floor space and clear ceiling height to determine the maximum column height you can install. Taller columns maximize your vertical storage capacity but reduce per-arm load capacity. Work with your rack supplier to find the optimal column height that balances your storage density goals with your load requirements. Also consider aisle widths — double-sided cantilever rack requires aisle access on both sides, while single-sided cantilever can be placed against walls or back-to-back with another row.

4. Consider your material-handling equipment. The type of equipment you use to load and unload cantilever rack — forklifts, pallet jacks, overhead cranes, or manual handling — influences your bay configuration. Forklift operators need adequate aisle width and arm height clearance to safely load material. If you use an overhead crane, you may be able to install taller columns with deeper arms since the crane can lower material precisely onto each arm without the lateral clearance constraints of a forklift.

5. Plan for growth and flexibility. Your storage needs will change over time. Choose a cantilever racking system that can be expanded, reconfigured, or relocated as your business evolves. Modular cantilever rack systems allow you to add arms, increase column height, or reposition arms to accommodate new product lines without replacing the entire system. This flexibility is one of the key advantages of investing in quality cantilever racking.

6. Evaluate used cantilever rack as a cost-effective option. High-quality used cantilever rack is available from surplus equipment dealers and can deliver significant cost savings compared to new systems. Used cantilever rack from a reputable supplier has been inspected for structural integrity, with arms and columns checked for bends, cracks, and excessive wear. For facilities that need to outfit large storage areas on a budget, used cantilever rack provides the same functional performance as new at a fraction of the cost.

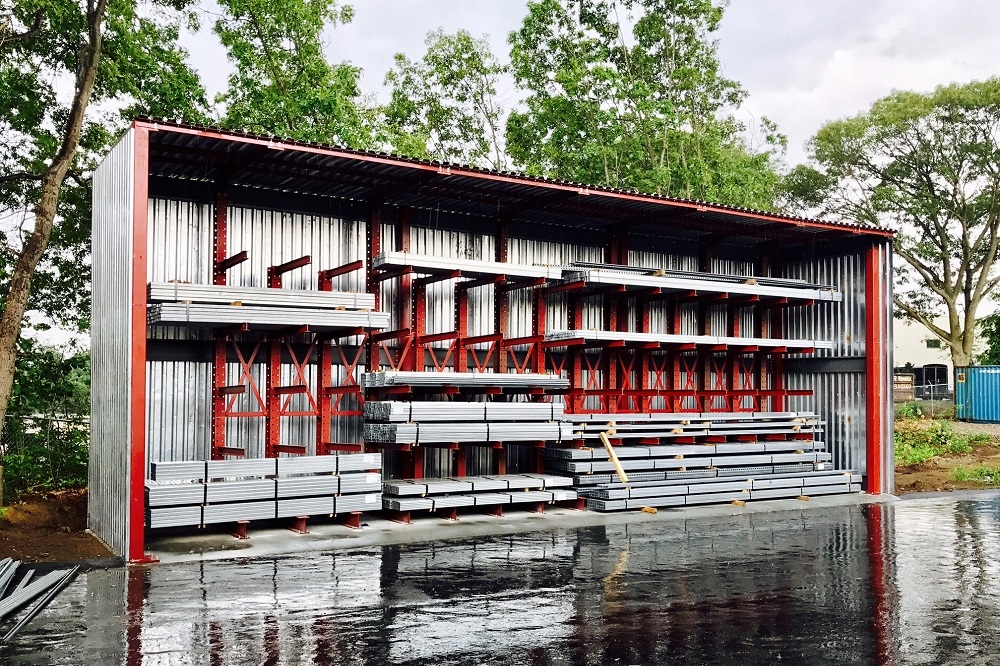

Used Cantilever Rack: Cost Savings Without Compromise

One of the smartest purchasing decisions a warehouse manager or facilities director can make is considering used cantilever rack when planning a new storage installation or expansion. High-quality pre-owned cantilever racking systems deliver the same functional performance as brand-new equipment at a fraction of the cost, making it possible to outfit your entire facility with heavy-duty cantilever rack without the heavy price tag that new systems require.

Surplus cantilever rack typically comes from facilities that have upgraded their operations, relocated, or downsized their storage needs. These systems have been in service, but that does not mean they are worn out or unreliable. Cantilever rack is built from heavy-gauge steel and designed for industrial environments, meaning a properly maintained used cantilever racking system can easily deliver another 15 to 20 years of reliable service — often at 50 to 70 percent less than the cost of new.

When evaluating used cantilever rack, inspect the following components carefully: upright columns should be straight with no visible bends, dents, or cracks, especially at the base where the column meets the floor plate; arm connectors and slot teeth should be intact without excessive wear that could allow arms to slip under load; arms should be free of bends, twists, or deformation that would compromise their load-bearing ability; and the powder coating or paint finish should be largely intact, as significant rust or corrosion can indicate structural degradation over time.

American Surplus maintains an extensive inventory of used cantilever rack that has been inspected, tested, and prepared for immediate shipment to facilities across the country. Every piece of used cantilever racking in our inventory is selected for structural integrity and functional performance, ensuring that you receive equipment that meets your storage requirements without the premium pricing of new cantilever racks. Whether you need a few single-sided uprights for a small bay or a full warehouse installation of double-sided cantilever racking systems, used equipment provides the most cost-effective path to expanding your storage capacity.

Installing Your Cantilever Rack System

Proper installation is critical to the safe and effective operation of any cantilever racking system. Whether you are installing new cantilever rack or reconfiguring an existing used cantilever racking system, following best practices during installation ensures your system performs safely and reliably for years to come.

Floor requirements. Cantilever rack columns must be anchored to a concrete floor that is rated to handle the combined weight of the rack structure, its maximum loaded capacity, and the dynamic forces generated during loading and unloading operations. The floor should be level within the tolerance specified by the rack manufacturer (typically no more than 1/4 inch over 10 feet) to prevent uneven load distribution that can destabilize the upright columns. If your existing floor does not meet these requirements, consult a structural engineer before installing cantilever racking.

Anchor installation. Each cantilever column base plate must be secured to the floor with appropriate anchor bolts — typically wedge anchors or sleeve anchors — installed at the bolt holes specified by the manufacturer. Anchor size, spacing, and embedment depth must match the load requirements for your specific installation and the compressive strength of your concrete floor. Never skip or reduce the number of anchor bolts, as the stability of the entire cantilever racking system depends on these connections to resist tipping forces.

Column alignment and plumb. Install each column upright so it is perfectly plumb (vertically straight) before tightening the anchor bolts. A column that is even slightly out of plumb will create uneven load distribution across the arms and can compromise the stability of the entire bay. Use a level to verify plumb on both faces of each column, and adjust the column position before fully torquing the anchor bolts.

Bracing installation. Back-to-back bracing (the diagonal or horizontal braces that connect the back of paired columns) must be installed according to the manufacturer's specifications. This bracing is what prevents the cantilever rack from tipping forward under load and is essential to the structural integrity of every double-sided cantilever racking system. Ensure all brace connections are secure and that the bracing is properly aligned before loading the system.

Arm placement and securing. Position each arm at the desired height and ensure the arm connector is fully seated in the column slot before tightening or locking it in place. Arms must be installed on both sides of the column (for double-sided rack) or on the front face only (for single-sided rack), and all arms at a given height level should be aligned horizontally to ensure even load distribution when materials are placed on them.

Cantilever Rack Maintenance & Safety Tips

Like all warehouse storage systems, cantilever rack requires regular inspection and maintenance to ensure safe operation and maximize its service life. Implementing a structured maintenance and safety program protects your personnel, your inventory, and your investment in cantilever racking infrastructure.

Regular inspection schedule. Establish a formal inspection routine for your cantilever racking system. At a minimum, conduct visual inspections monthly and comprehensive inspections annually by a qualified rack inspector. Look for signs of column deformation, arm bending, connector wear, anchor bolt loosening, bracing damage, and base plate distortion. Document all findings and address any issues immediately before they escalate into safety hazards or structural failures.

Load management. Never exceed the rated load capacity of any cantilever arm or column pair. Distribute loads evenly across the full length of each arm whenever possible, and avoid concentrating heavy weight at the free end of the arm where bending stress is greatest. Securely fasten or strap materials that are prone to shifting, rolling, or sliding during storage, particularly cylindrical items like pipe and tubing that can roll off unprotected arms.

Collision protection. Forklift impacts are the most common cause of cantilever rack damage. Install column guards, aisle protectors, or bollards around the lower portions of your cantilever rack uprights to absorb and deflect impacts from material-handling equipment. Even minor dents in a column can significantly reduce its load capacity, so any column that has been struck should be inspected and, if necessary, repaired or replaced before returning to service.

Corrosion prevention. In environments where moisture, chemicals, or outdoor exposure are factors, inspect your cantilever rack for signs of rust and corrosion regularly. Touch up any chipped paint or exposed steel with appropriate rust-inhibiting coatings to prevent corrosion from progressing and weakening the structural components. In severe corrosive environments, consider specifying galvanized or stainless steel cantilever rack for your installation.

Seismic and zone considerations. If your facility is located in a seismic zone or area with high wind loads, ensure your cantilever racking system is designed and braced to meet the applicable seismic codes and standards for your region. Seismic-rated cantilever rack systems require additional bracing, stronger anchor connections, and sometimes reduced load capacities to ensure safe performance during seismic events.

Partner with American Surplus for Cantilever Rack Solutions

Whether you are outfitting a brand-new warehouse, expanding your existing storage capacity, or replacing worn cantilever rack with a cost-effective used alternative, American Surplus has the inventory and expertise to help you build the right cantilever racking system for your operation. Our extensive selection of used cantilever rack includes single-sided and double-sided uprights, heavy-duty and light-duty arms, column bracing, and all necessary hardware — all inspected and ready for immediate deployment to your facility.

We understand that every warehouse has unique storage requirements based on the materials you handle, the dimensions of your space, and the throughput demands of your operation. That is why our team of material handling specialists works closely with each customer to recommend the optimal cantilever rack configuration for their specific needs. From a single bay of lightweight cantilever arms in a small shop to a multi-tier cantilever racking installation in a large distribution center, we have the equipment and knowledge to deliver a solution that fits.

Beyond cantilever rack, we also carry a full line of used pallet racking, used shelving, and related warehouse storage components, making us a one-stop source for all your industrial storage needs. Our inventory is constantly turning over with new arrivals, so we recommend contacting us early in your planning process to secure the specific cantilever rack configurations and quantities you need before they are purchased by another facility.

Contact us today at 800-876-3736 or fill out a consultation request on our website to schedule a conversation about your cantilever rack requirements. Let our experienced team help you design, source, and deploy a cantilever racking system that maximizes your storage capacity, protects your inventory, and delivers exceptional value for your investment.

Frequently Asked Questions About Cantilever Racking

Based on common questions we've received from warehouse managers, facilities directors, and business owners around the country, we've compiled this list of clear answers to some frequently asked questions about cantilever racking systems:
