 Used SPEEDAIRE Splash Lubricated Electric Air Compressors
 Used SPEEDAIRE Splash Lubricated Electric Air Compressors Used SPEEDAIRE Splash Lubricated Electric Air Compressors Used SPEEDAIRE Splash Lubricated Electric Air Compressors Used SPEEDAIRE Splash Lubricated Electric Air Compressors

Used SPEEDAIRE Electric Air Compressors

List Price:

$4,503.00

| You Save:

$2,508.00 (55.7%)

ASI Price:

$1,995.00

Request a Quote

  • Splash-lubricated design keeps components cool during operation
  • Generates up to 175 PSI pressure for a wide variety of pressurized air applications
  • 80 Gallon capacity with 5hp motor ensures you always have air when you need it
  • Designed for simple maintenance for long lasting service life
Specifications
Attribute Value
Brand SPEEDAIRE

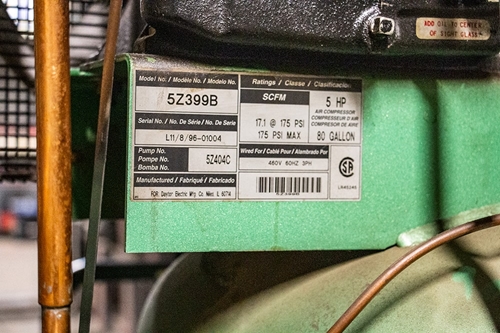

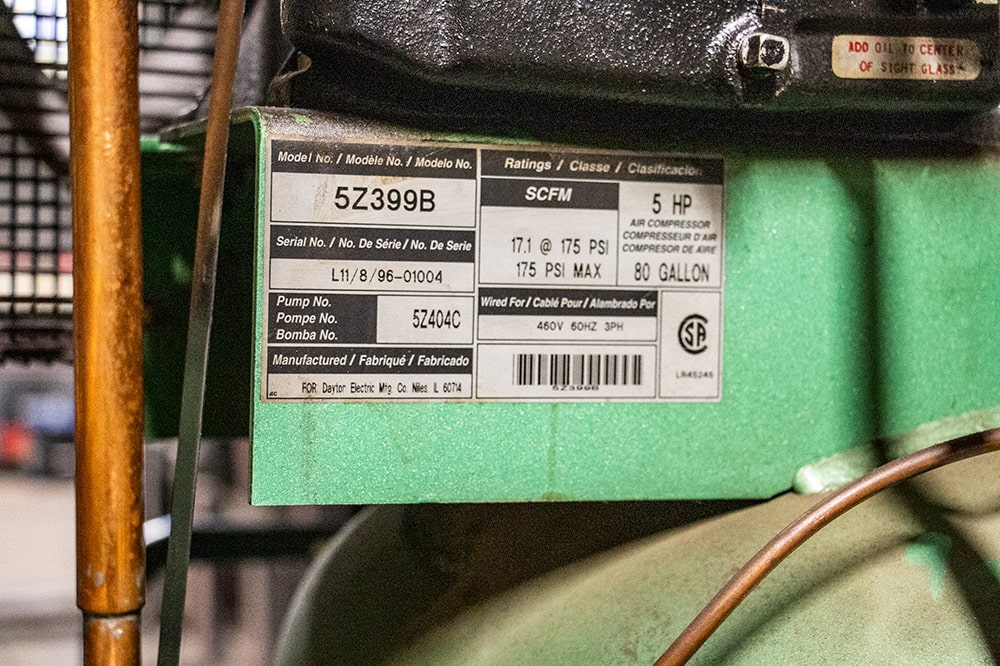

Manufacturer Part Number 5Z399B (Pump no. 5Z404C)
Lubrication Type Splash Lubricated
Tank Style Vertical
Number of Stages 2
Output Power 5HP
Free Air Flow Rate @ Max. Pressure 17.1 cfm
Max. Operating Pressure 175 PSI
Tank Size 80 Gal.
Input Voltage 460V AC
Phase 3
Frequency 60 Hz
Compressor Package Type Base Model
Pump Style Simplex
Pump Type Reciprocating
Pump Location Top Mount
Pump Oil Capacity 17 fl.oz.
Current Rating 12.8A
Max. Speed 1,190 RPM
Duty Cycle Continuous
Specifications (Continued)
Attribute Value
Sound Level 83 dBA
Includes Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Cylinder Material Cast Iron
Enclosure Type Totally Enclosed
Finish Powder Coated
ASME Tank Yes
Control Type Pressure Switch
On Pressure Switch Setting 145 PSI
Off Pressure Switch Setting 175 PSI
Inlet Size 3/4"
Outlet Size 3/4"
Outlet Type NPT
Outlet Gender Female
Overall Length 35"
Overall Width 27"
Overall Height 71"
Standard ASME Approved, California Code 462(L)(2), CSA, UL Listed, UL1450
UNSPSC 40151601
Country of Origin USA
Serial Number L11/8/96-01004

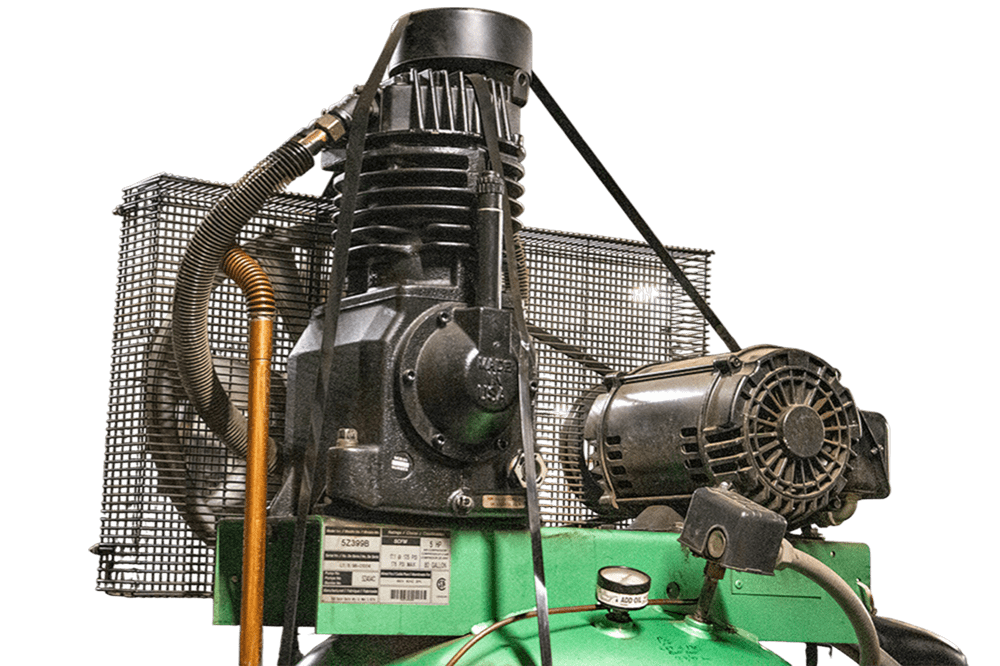

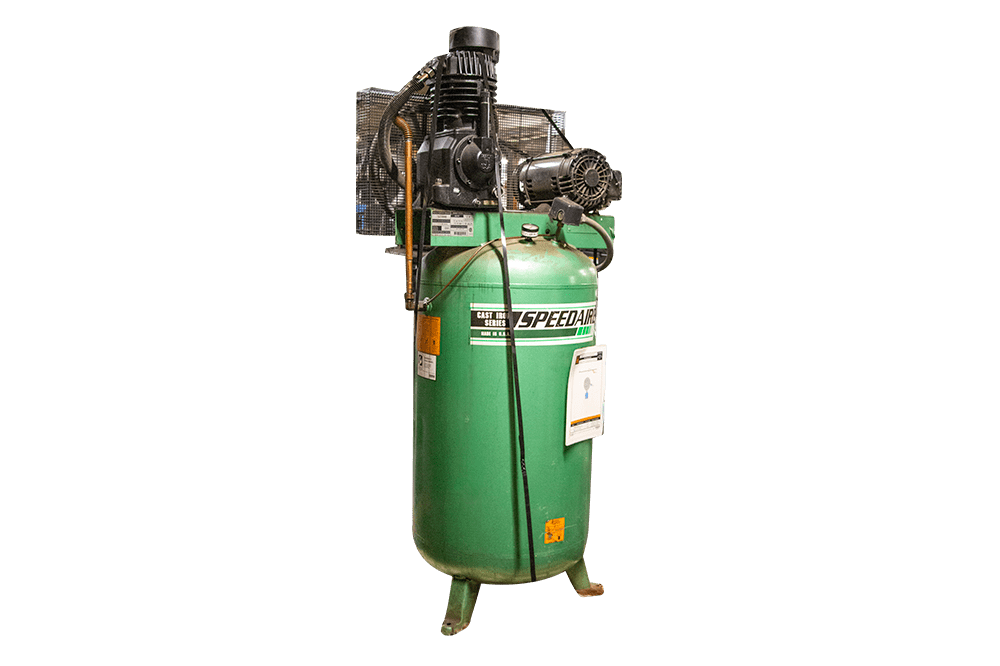

The SPEEDAIRE 5Z399B Vertical Splash-Lubricated Air Compressor is designed to provide continuous pressured air whenever you need it. The high capacity 80 gallon tank stores up to 175 PSI compressed air that can be integrated into your workflow for a variety of applications. Whether providing air for just one workstation, or setting up a multi-hose shop space, the SPEEDAIRE line of air compressors is designed to meet and exceed your expectations. The splash-lubricated design uses a dipper attached to a rod that scoops oil out of a reservoir, throwing droplets of oil onto the compressor's internal components to lubricate and keep them cool during operation. With regular oil changes, this air compressor is guaranteed to provide long lasting, reliable service.
