Southworth PalletPal Walkie Automatic Pallet Handling Systems

Download Manufacturer Brochure

Temporarily Out of Stock

Thank you for your interest in this product. Unfortunately, we're out of stock at this time. Keep an eye on this page we'll update it when more material arrives!

Alternatively, browse the rest of our used pallet positioners to see if we have something else that suits your needs!

Southworth PalletPal Automatic Spring Level Loaders

ASI Price:

Call or Request Quote

Request a Quote

  • Self Adjusting, no action required from operator
  • Gives comfortable working height to save your back
  • Ideal for repack areas and assembly plants
  • Rugged steel frame supports up to 4,500 lbs. with self-leveling between 400-2,500 lbs.
  • Remains level with uneven loads
  • Makes loading pallets safer, easier, and faster
  • Uses a calibrated spring to lower the load as boxes, cases, or cartons are added
  • Ideal for building or unpacking pallet loads
  • Maintenance free
  • Rare product
  • No power supply is required
  • Designed for use with an electric pallet jack to create a mobile, ergonomic palletizing solution
  • [LE-0056]
Capacity4,500 lbs., self-levels between 400-2,500 lbs.
Length78"
StyleSpring Loaded
Width32"
BrandSouthworth

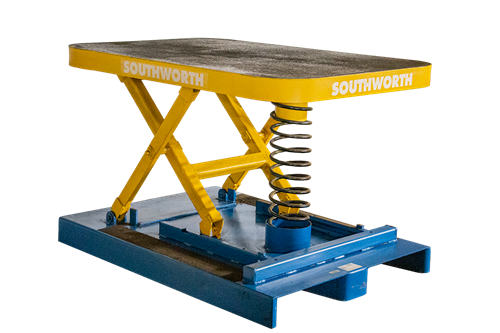

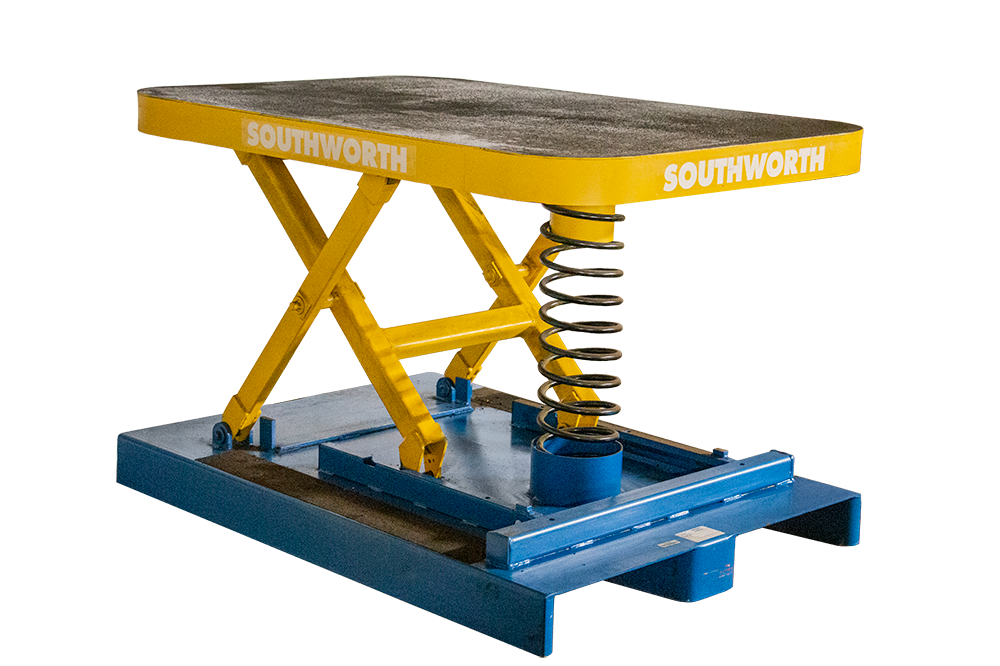

Used Southworth Pallet Pal Walkie Pallet Handlers


The Southworth PalletPal Walkie is a passive spring actuated level loading making loading pallets faster, safer, and easier. This simple, automatic load leveler uses a calibrated spring to lower the load as cases, boxes, or cartons are added. No power supply is required. No modifications or special attachments are required, the PalletPal fits all standard electric walkies and walkie riders. Pallet loads up to 4,500 lbs. can be handled with self leveling between 400-2,500 lbs. The specially designed baseframe has generous tapered openings at each end to receive the forks of all standard electric walkies. That means easy pickup and drop off without binding and the Walkie, loaded or empty will not slip once on the forks. Pallet truck sold separately.

We can't list our entire inventory online, if you do not see what you are looking for, just ask! Quantity discounts available on used lift tables 40-60% off the price of new. Call 800-876-3736 for additional information & a free quote. American Surplus will provide a quote on new equipment if used is unavailable. Nationwide shipping is available. Price and product availability subject to change without notice. Inventory is subject to prior sale.

How to Use the PalletPal Walkie for Order Picking


A worker simply drivers the pallet truck into the PalletPal's built-in fork channels (flared ends in fork channels make lining up the forks simple). An empty pallet is positioned on the skid-resistant platform. The worker does the same job he has always done except the platform is at a comfortable height which can be loaded easily with no bending or stretching. As more items are added, the Walkie's spring compresses to lower the platform while keepign the top level at a comfortable, ergonomic height.

Features Include:
  • Automatic height adjustment - Spring mechanism responds to load
  • Requires no electrical power
  • Platform accomodates all types of pallets and skids including GEO and half pallets
  • Platform recesses and narrow base pads allow workers to get closer to the load
Advantages Include:
  • Increased efficiency & productivity
  • Reduced product damage / waste
  • Lowered risk of injury
  • Reduced worker fatigue
  • Lower employee turnover
  • Lower worker's compensation costs
