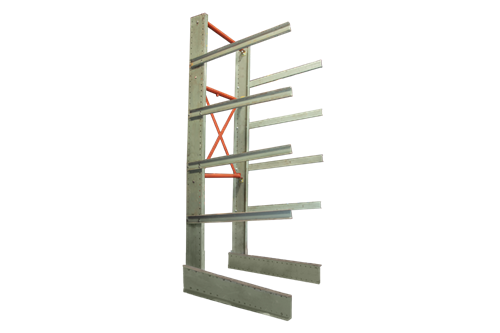

Used Regular Duty Cantilever Rack
Used Regular Duty Cantilever RackUsed Regular Duty Cantilever RackUsed Regular Duty Cantilever Rack

Used Regular Duty Cantilever Rack

As Low As:

Call or Request Quote

Request a Quote
  • Used Regular Duty Cantilever Rack

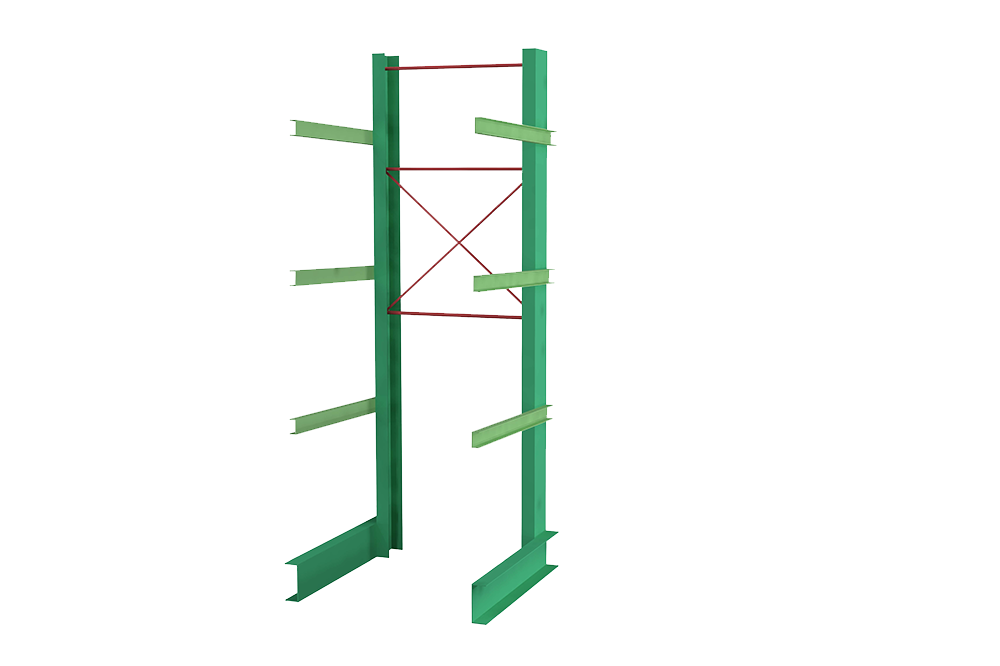

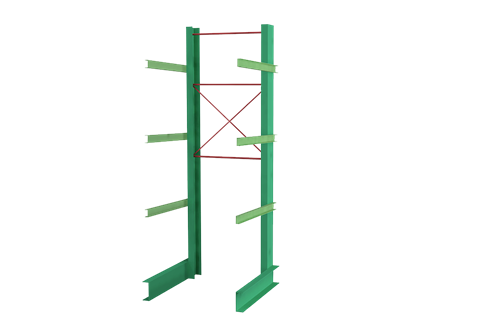

  • Prices above are for a starter bay, including 2 uprights, 4 arms, 2 bases and brace set
  • In Stock, See Below for Available Sizes
  • Available as Single or Double Sided
  • Easy to Install, Nationwide Shipping
SKU Description Beam DimensionsCapacityComponentWeightCantilever Arm Capacity (2 Level)Cantilever Arm Capacity (3 Level)Width Item Price Qty.
CR-0114
Used Regular Duty Cantilever Rack Trees - W6 x 144"
W6 x 144"3,600 lbs.Cantilever Trees108 lbs.
$150.00
Qty:

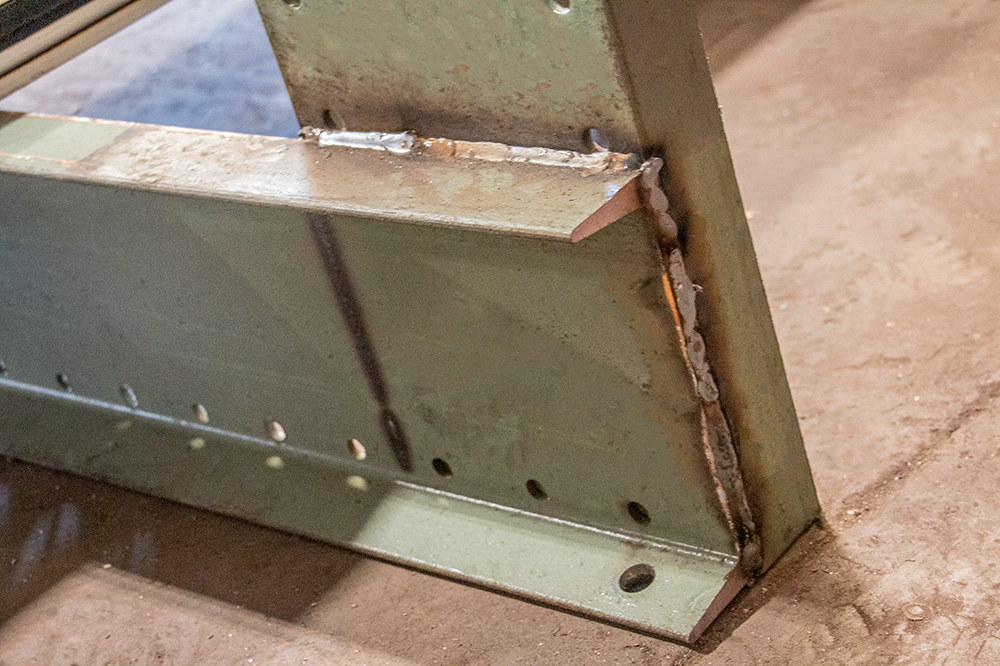

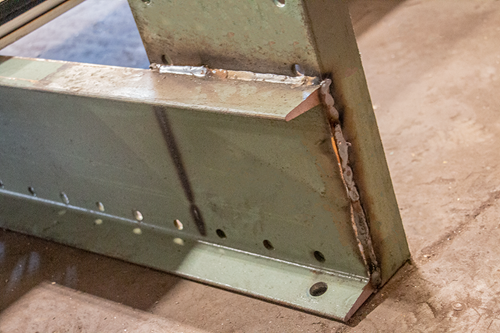

RD24B
Used Regular Duty Cantilever Rack Bases - C6/W6 x 24"
C6/W6 x 24"Cantilever Bases18 lbs.
$45.00
Qty:
RD36B
Used Regular Duty Cantilever Rack Bases - C6/W6 x 36"
C6/W6 x 36"Cantilever Bases27 lbs.
$55.00
Qty:
RD48B
Used Regular Duty Cantilever Rack Bases - C6/W6 x 48"
C6/W6 x 48"Cantilever Bases36 lbs.
$65.00
Qty:
RDARM-3-24
Used Regular Duty Cantilever Rack Arms - DC3 x 24"
DC3 x 24"Cantilever Arms16.42,200 lbs. ea.1,500 lbs. ea.
$25.00
Qty:
RDARM-3-36
Used Regular Duty Cantilever Rack Arms - DC3 x 36"
DC3 x 24"Cantilever Arms24.6 lbs.2,000 lbs. ea.1,500 lbs. ea.
$27.00
Qty:
RDARM-3-48
Used Regular Duty Cantilever Rack Arms - DC3 x 48"
DC3 x 48"Cantilever Arms32.8 lbs.1,500 lbs. ea.750 lbs. ea.
$30.00
Qty:
RDARM-4-48
Used Regular Duty Cantilever Rack Arms - DC4 x 48"
DC4 x 48"Cantilever Arms41 lbs.1,800 lbs. ea.900 lbs. ea.
$36.00
Qty:

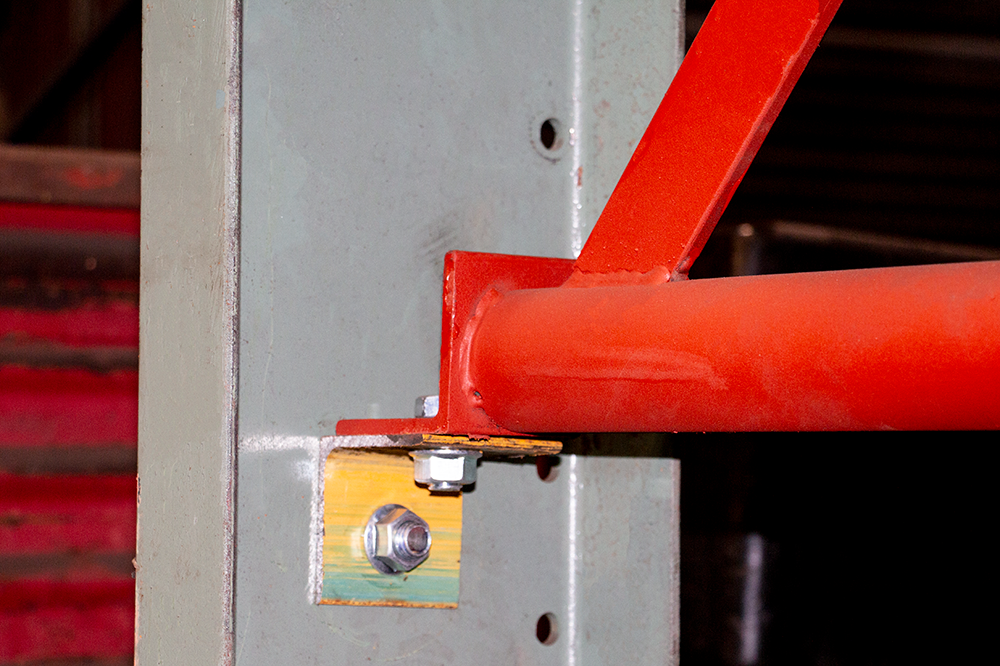

CANT-HBR-48
Used Cantilever Rack Horizontal Braces - 48"
Cantilever Horizontal Braces60 lbs.48"
$19.95
Qty:
CANT-HBR-60
Used Cantilever Rack Horizontal Braces - 60"
Cantilever Horizontal Braces75 lbs.60"
$24.95
Qty:
CANT-HBR-72
Used Cantilever Rack Horizontal Braces - 72"
Cantilever Horizontal Braces90 lbs.72"
$29.95
Qty:
CANT-HBR-84
Used Cantilever Rack Horizontal Braces - 84"
Cantilever Horizontal Braces105 lbs.84"
$39.95
Qty:

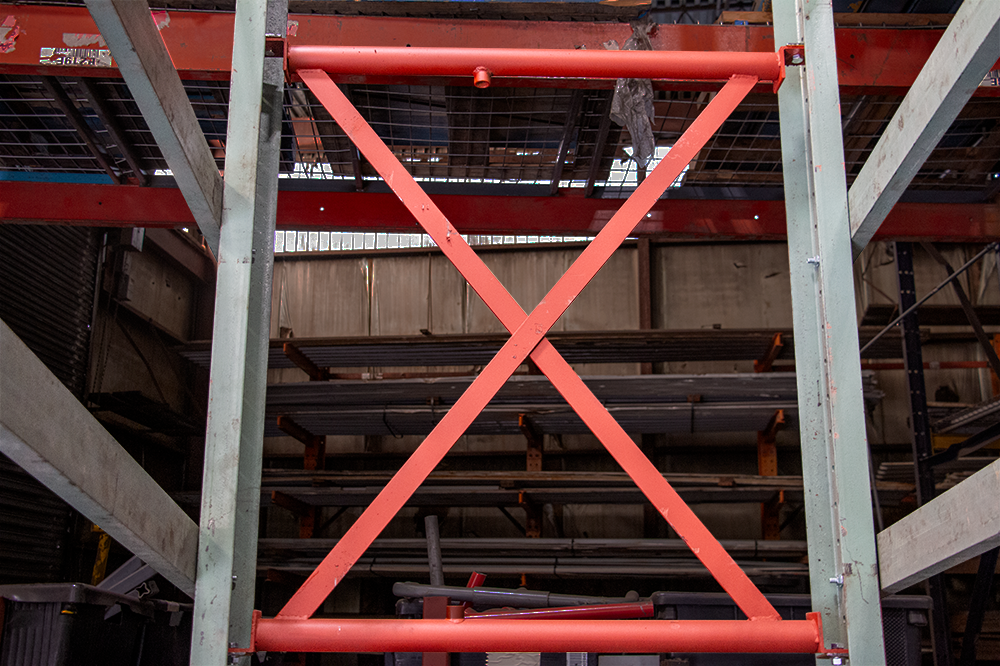

CANT-XBR-48
Used Cantilever Rack X-Braces - 48"
Cantilever X-Braces60 lbs.48"
$89.00
Qty:
CANT-XBR-60
Used Cantilever Rack X-Braces - 60"
Cantilever X-Braces75 lbs.60"
$99.00
Qty:
CANT-XBR-72
Used Cantilever Rack X-Braces - 72"
Cantilever X-Braces90 lbs.72"
$109.00
Qty:
CANT-XBR-84
Used Cantilever Rack X-Braces - 84"
Cantilever X-Braces105 lbs.84"
$119.00
Qty:
CANT-ANCHOR
New Concrete Floor Anchors for Cantilever Rack (4-Pack)†
5 1/8" x 4 1/2"Concrete Floor Anchors
$12.00
Qty:

*Cantilever systems over 10' tall require (2) horizontal braces and (1) x-brace per bay to maintain full stability & capacity tolerances. Additionally, combined capacity across cantilever arms cannot exceed 10,000 lbs. per side per tree.

†4 floor anchors per base are required to ensure safety and stability.

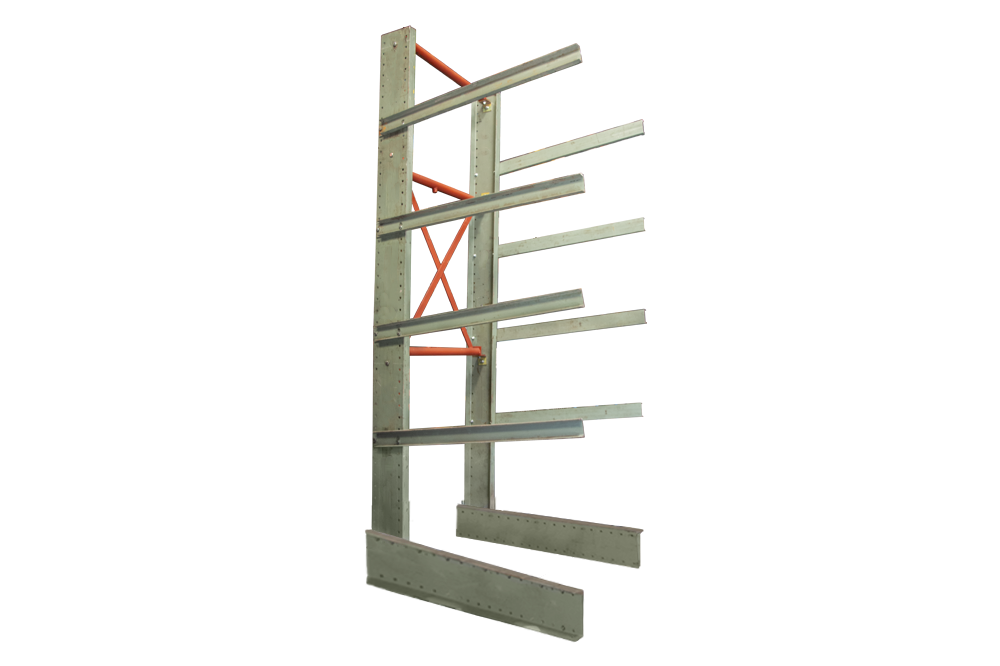

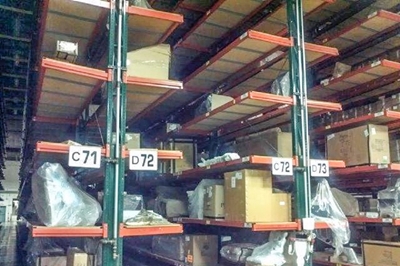

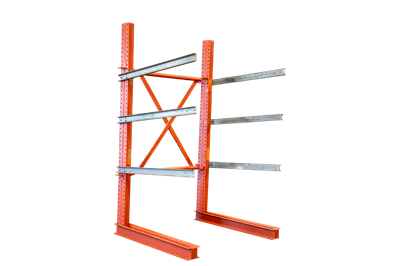

Regular Duty Cantilever Rack is our entry-level line of Cantilever Racking Systems, offering the durability of Structural I-Beam material at an affordable price. Each tree (or upright) is capable of handling loads up to 3,600 lbs. on each side, making ASI's Regular Duty Cantilever line a great choice if you are planning to store lighter materials. The continuous, uninterrupted design of a cantilever rack system makes it the ideal choice for storing long items that may not fit very well on a traditional pallet rack, such as pipes, furniture, and lumber.

At American Surplus, we have been designing cantilever rack systems for over 25 years; providing quality, affordable solutions to our customers big and small nationwide. Drawing on our expertise, we have designed our Regular Duty Cantilever Rack Kits to provide the years of dedicated service you would expect, but at a fraction of the cost. Our regular duty cantilever rack systems are built from 100% used material, thoroughly refurbished by our production team. Our process ensures that your cantilever rack system stands the test of time while costing up to 60% less than comparable new systems.

In addition to savings, American Surplus offers unbeatable service when you Request a Quote. From concept to completion, our experienced sales team, CAD Specialist, and production crew have the skills to help design the perfect cantilever rack system for your application. To learn more and start designing your cantilever rack system, Request a fast, free quote online or call our sales team at (800) 876-3736 today!
