Don’t get left out in the heat! HVLS fans are the best choice for keeping large environments like warehouses comfortable year-round!
Request a Quote Now To Reserve Before They’re Gone!
| Detailed Specifications | ||||
|---|---|---|---|---|
| Specification | 10′ Unit | 14′ Unit | 16′ Unit | 20′ Unit |
| Pricing & Availability | ||||
| Quantity In Stock (Updated 10/16/2025) | Out of Stock | 1 | 13 | Out of Stock |
|
MSRP |
|
|
|
|
|
ASI Price (Save 40%!) |
$3,475 ea. | $3,500 ea. | ||
| Airfoil | ||||
| Airfoil Style | 7.375″ Extruded Anodized Aluminum Airfoil | |||
| # Of Airfoils | 6 | |||
| Performance | ||||
| Max Speed | 162 RPM | 103 RPM | 84 RPM | 70 RPM |
| Recommended Spacing | 60 ft | 70 ft | 85 ft | 100 ft |
| Max Affected Area | 6,000 sq ft | 10,000 sq ft | 12,000 sq ft | 18,000 sq ft |
| Sound level dBA @ Max Speed | 58 | 61 | ||
| Hanging Requirements | ||||
| Hanging Weight | 178 lbs | 195 lbs | 202 lbs | 217 lbs |
| Max Torque | 24 ft-lb | 43 ft-lb | 40 ft-lb | 88 ft-lb |
| Max Thrust In Reverse | 6 lbs | 14 lbs | 15 lbs | 31 lbs |
| Motor & Drive Train | ||||

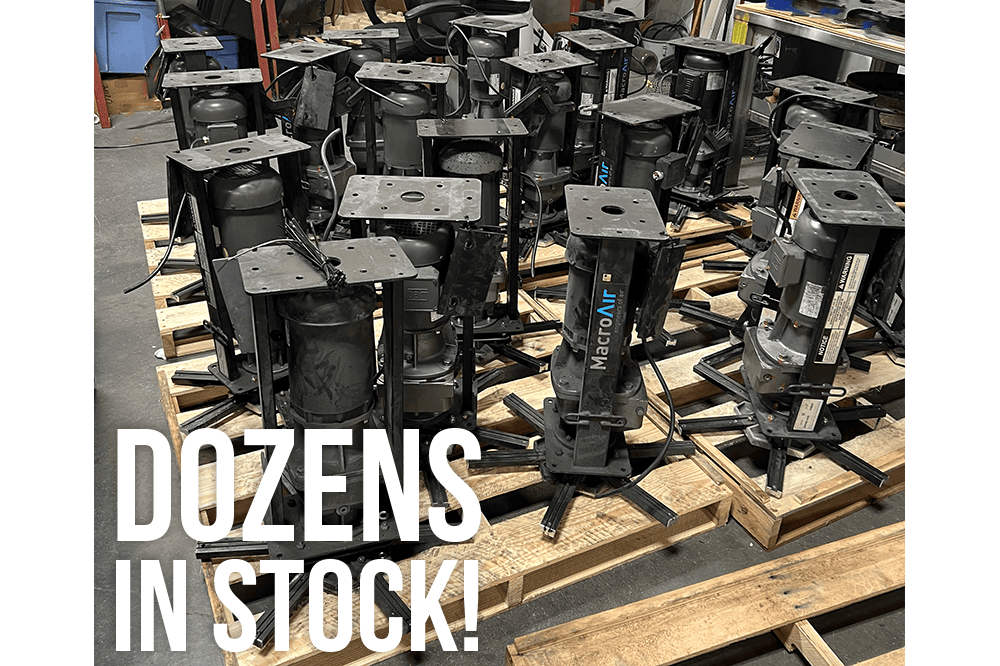

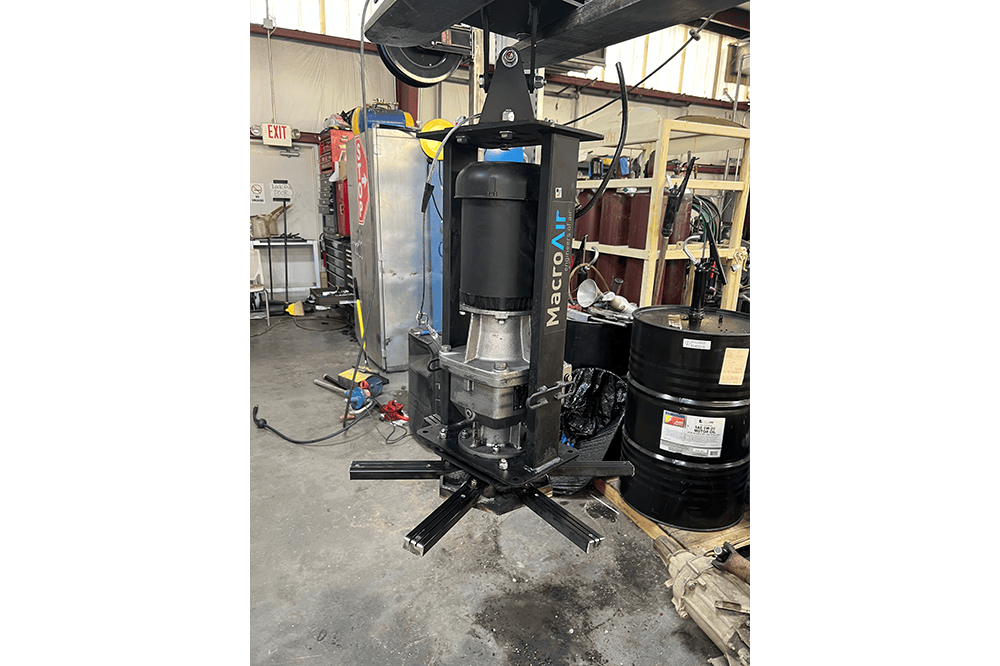

| Motor Type | AC Induction Motor w/ Sealed 2-Stage Helical Gear Box | |||
| Equivalent Horsepower | 1.0 HP | 1.5 HP | ||
| Power Requirements | ||||
| Power Source | Wired for 3Ø 480 VAC @ 50/60 Hz | |||
| Max Amp Draw | 4.3A | |||
| Installation | ||||
| Mounting Hardware | Universal Mount Hardware | |||
| Extensions | Optional Extensions Available From MFG (Not Included) | |||
| Ratings & Compliance | ||||
| Fire & Sprinkler | NFPA Compliant | |||

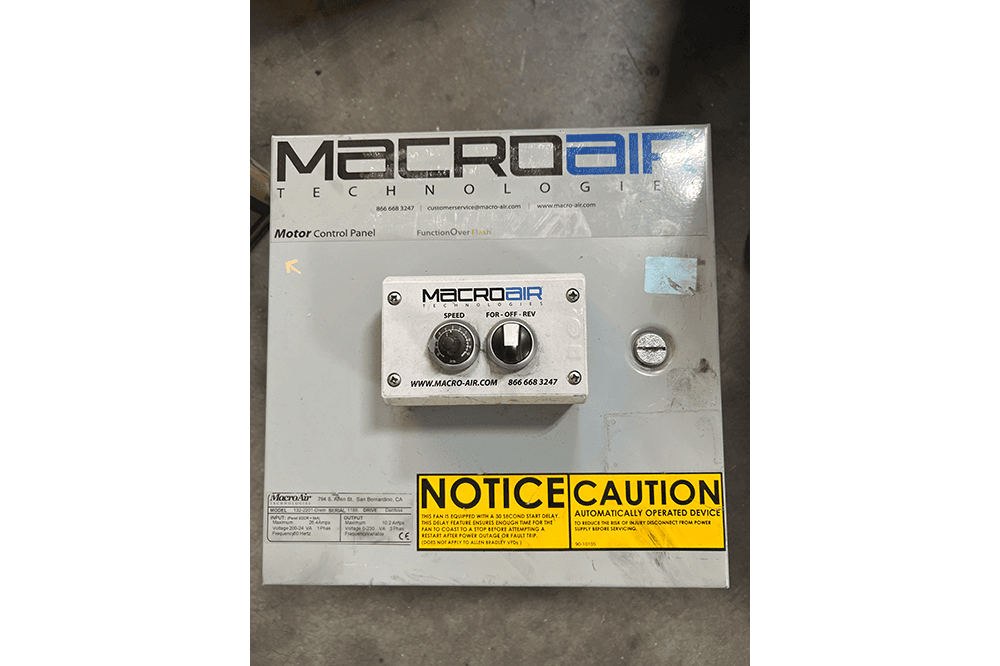

| Wash Down Duty Rating | Fan Unit IP55 Rated, Controller Control Panel Not Rated | |||
| Certifications | UL507 | |||

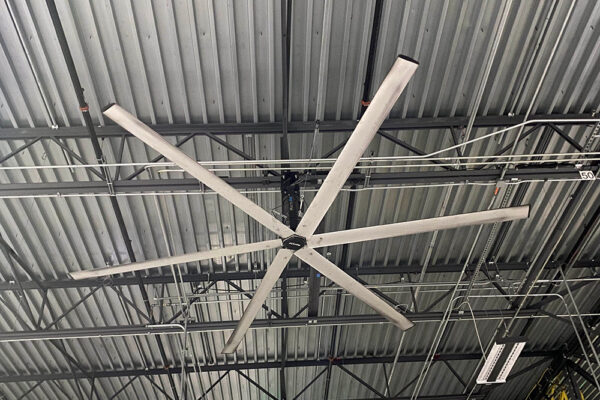

Used MacroAir HVLS Ceiling Fans, also known as large industrial ceiling fans, are designed to help regulate temperature in any industrial environment. The low-speed, high-volume design provides year-round temperature regulation that’s quieter, more efficient, and lower-maintenance than alternative HVAC systems. Pushing high volumes of air at lower velocity than traditional fans, MacroAir HVLS Ceiling Fans gently push hot air back to the floor during the winter time, while keeping air circulating and more comfortable during the hot summer months. One all-season solution with no compressors or other HVAC components provides an affordable, energy-efficient alternative to Air Conditioning and reduces consumption of heating fuel.
Summer Is Right Around The Corner! Don’t let record-breaking heat sneak up on you!
Request a Quote Now To Reserve Before They’re Gone!
