| Motor | 2 HP |
|---|---|
| Weight | 395 lbs. |
| Width | 24' |
These Go Fan Yourself Z-Tech Warehouse Ceiling Fans will increase the wellness of the employees, improve productivity, better natural ventilation, and reduce heating and cooling costs. Bad indoor air quality can cause dust to get inside equipment, which can cause components to fail or overheat. This will put your businesses daily operations at serious risk. Aside from that warehouse workers in poorly ventilated facilities can develop poor health from bad air quality and long hours. When workers have improved air quality and working conditions, businesses will then see an increase in productivity and overall efficiency. With the proper ventilation you’ll be able to have a peace of mind knowing that moisture won’t buildup creating rust and mold damaging inventory. Industrial warehouse ceiling fans are a cost-effective solution to improve all your facilities air quality needs.

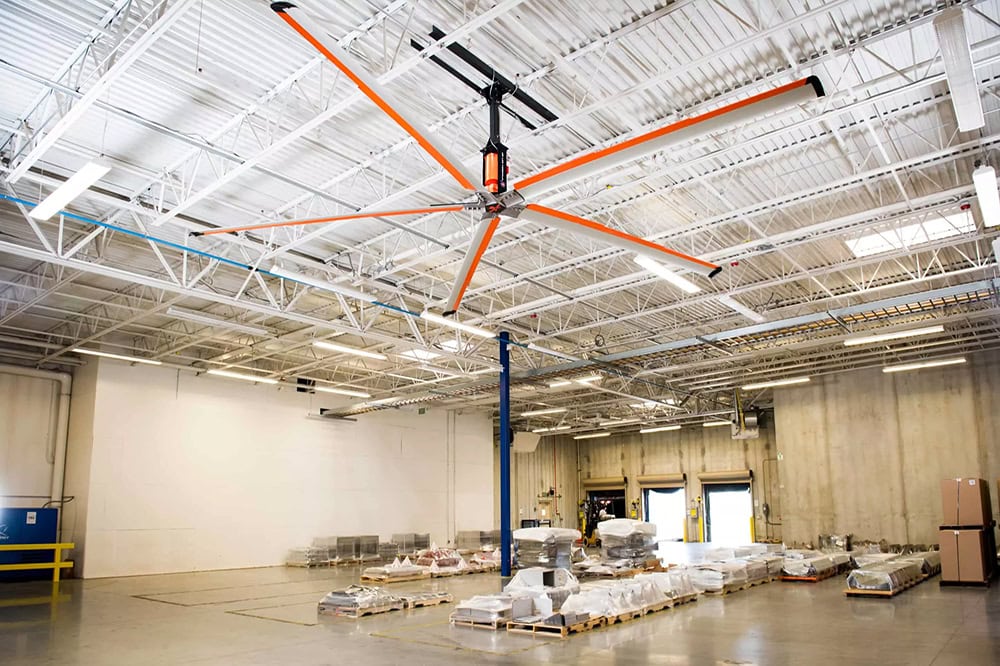

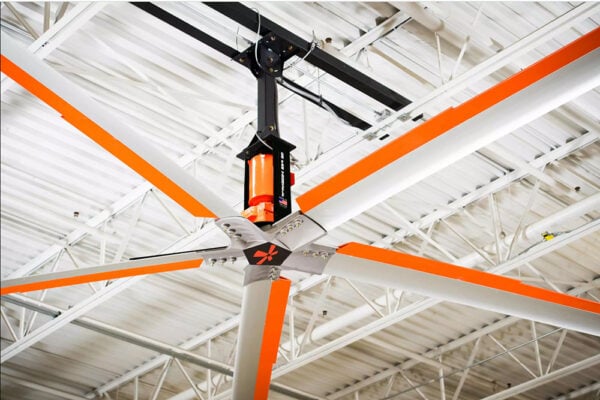

A high-volume low-speed (HVLS) fan is effective for industrial and commercial applications where HVAC/R systems are cost prohibitive or impractical. A HVLS fan moves more air farther than a traditional fan rotating at the same speed thanks to their larger diameter. The Z-Tech HVLS fan features a massive 24′ diameter capable of moving large amounts of air, keeping your workplace cool.
We can’t list our entire inventory online, if you do not see what you are looking for, just ask! Quantity discounts available on used warehouse fans 40-60% off the price of new. Call (800) 876-3736 for additional information or request a quote online. American Surplus will provide a quote on new equipment if used is unavailable. Nationwide shipping is available. Price and product availability subject to change without notice. Inventory is subject to prior sale.
| General | |
| Nominal Rotations Per Minute | 55 |
| Noise Level | Industry Standard Low |
| Blade | Patented Z-Tech |
| Number of Blades | 5 |
| Gear Motor | |
| Quantis Drive Train w/ synthetic oil, Viton sealing system, and pressure equalizing valve | |
| Insulation Class | H 140°F Max Ambient Temperature |
| Horsepower | 2 HP @ 50/60 Hz |
| Voltage | 3∅ – 200-240V or 380-480V |
| Nominal Amps Consumed (3∅) | 7.5A @ 208V |
| 7.0A @ 230V | |
| 3.5A @ 460V | |
| Construction | |
| Frame | Painted Steel Frame |
| Hub | Cast Aluminum |
| Blades | Extruded Aluminum |
| Blade Leading Edge End Caps | ABS |
| Blade Leading Edge Color | GFY Orange |
| Safety Components | |
| Safety Ring | 1/4″ Powder Coated Steel |
| Z-Tech Safety System | (4) Individual Straps Break Strength @ 16,000 lbs. |
| Mounting Hardware | |
| Standard Mount | Universal I-Beam Clamp |
| Down Tube | 1ft. Standard |
Go Fan Yourself Z-Tech HVLS Spec Sheet
Go Fan Yourself Z-Tech HVLS Product Brochure
Go Fan Yourself Z-Tech HVLS Installation & Operation Guide
Go Fan Yourself Z-Tech HVLS Key Features Sheet
