The Global Affinity G60-HD Vertical Baler is engineered with the customer in mind, delivering robust performance and reliability to exceed expectations. Built for heavy-duty applications, its 50% heavier bale chamber, reinforced side walls, and 3/8” solid ram—featuring capped channels for multi-material versatility—ensure lasting durability straight from the factory. Operators benefit from intuitive enhancements like the solid feed gate and ergonomic gate handle design, simplifying daily use. A scratch- and chip-resistant epoxy resin finish adds long-term aesthetic and functional resilience, while the heavy-duty eject system incorporates laser-cut retainers to prevent operator misalignment, dramatically extending chain life. Advanced PLC controls with integrated safety monitoring and illuminated safety switches streamline troubleshooting, minimizing downtime. For seamless maintenance, quick-connect ISO liquid tight connectors enable rapid parts replacement, keeping productivity high. Every detail of the G60-HD reflects a commitment to operator ease, industrial-grade longevity, and hassle-free serviceability.

The G60-HD Model line is specifically designed as a multipurpose machine. Ideal for retail, distribution, medical, and manufacturing facilities, the G60-HD is up to the task. Popular in heavy recycling applications, the frame is designed to bale OCC, plastic, & nonferrous metals such as aluminum siding and copper wire. The structure is welded by AWS certified technicians. The standard unit is UL 508A approved and is equipped with a quiet power unit & PLC controls. This baler is designed to meet and exceed OSHA and ANSI requirements.

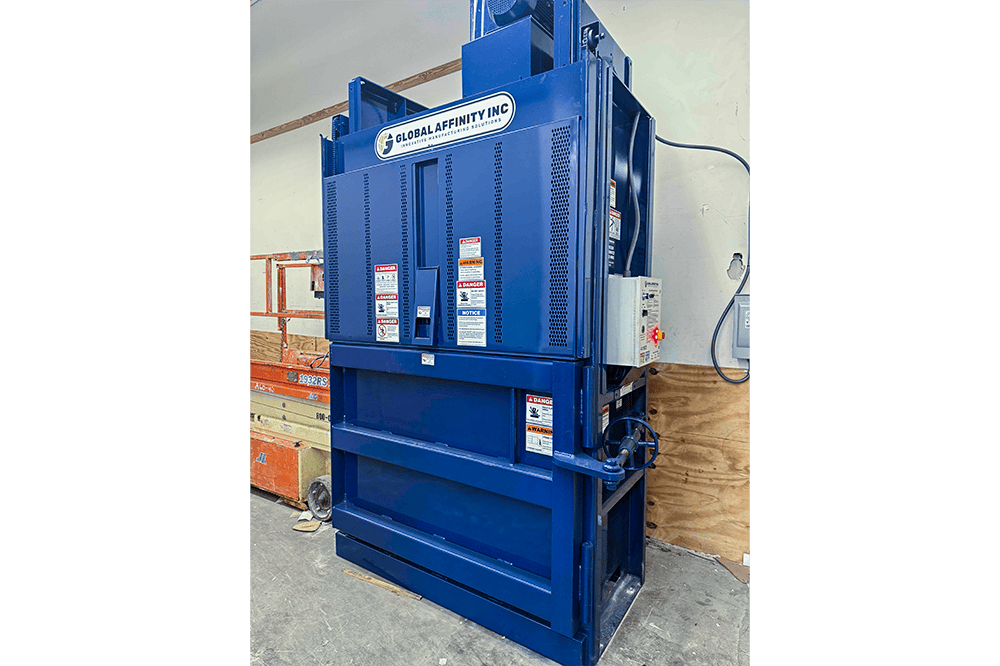

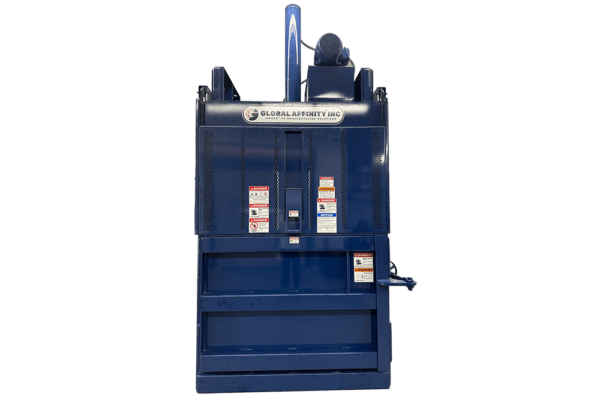

Global Affinity G60-HD Vertical Balers

ASI Price:

Call or Request Quote

  • 50% heavier bale chamber, side walls, and ram for heavy duty lasting reliability
  • 3/8″ solid formed ram body with caped ram & base channels for multi-material applications from the factory
  • Solid feed gate design
  • Improved gate handle design for ease of use
  • Epoxy resin hardener mixed with finish coats for scratch & chip-resistant finish
  • Heavy duty eject system with laser cut & formed eject bar retainers prevent incorrect engagement by operators greatly extending eject chain life
  • PLC controls with safety device monitoring built-in
  • Safety switches with built in indicator lights for reduced troubleshooting time
  • Quick connect ISO liquid tight connectors for quick, easy parts replacement

Additional information

Bale Cycle Time

56 Seconds

Bale Feed Opening

60" x 27"

Bale Size

60" W x 30" D x 48" H

Bale Weight Capacity

Up to 1,100 lbs.

Brand

Global Affinity

Cylinder Specifications

6" Bore 3.5" Rod 48" Stroke

Depth

41"

Electrical Input Requirements

208/230/480, 3 Phase

Feed Height

54.5"

Height

149.5"

Hydraulic Pump Flow

10.5 gpm

Max Hydraulic Pressure

2,000 PSI operational, 2,300 PSI max.

Model

G60-HD

Motor

10HP

Operating Force

56,538 lbs (65.019 lbs. max.)

Operating Pressure

30.9 PSI (35.5 PSI Max.)

Voltage

110 VAC (Control Voltage)

Width

78"
