| Specifications | |
|---|---|
| Attribute | Value |
| Brand | SPEEDAIRE |
| Manufacturer Part Number | 5Z399B (Pump no. 5Z404C) |
| Lubrication Type | Splash Lubricated |
| Tank Style | Vertical |
| Number of Stages | 2 |
| Output Power | 5HP |
| Free Air Flow Rate @ Max. Pressure | 17.1 cfm |
| Max. Operating Pressure | 175 PSI |
| Tank Size | 80 Gal. |
| Input Voltage | 460V AC |
| Phase | 3 |
| Frequency | 60 Hz |
| Compressor Package Type | Base Model |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Pump Location | Top Mount |
| Pump Oil Capacity | 17 fl.oz. |
| Current Rating | 12.8A |
| Max. Speed | 1,190 RPM |
| Duty Cycle | Continuous |
| Specifications (Continued) | |
|---|---|
| Attribute | Value |
| Sound Level | 83 dBA |
| Includes | Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve |
| Cylinder Material | Cast Iron |
| Enclosure Type | Totally Enclosed |
| Finish | Powder Coated |
| ASME Tank | Yes |
| Control Type | Pressure Switch |
| On Pressure Switch Setting | 145 PSI |
| Off Pressure Switch Setting | 175 PSI |
| Inlet Size | 3/4″ |
| Outlet Size | 3/4″ |
| Outlet Type | NPT |
| Outlet Gender | Female |
| Overall Length | 35″ |
| Overall Width | 27″ |
| Overall Height | 71″ |
| Standard | ASME Approved, California Code 462(L)(2), CSA, UL Listed, UL1450 |
| UNSPSC | 40151601 |
| Country of Origin | USA |

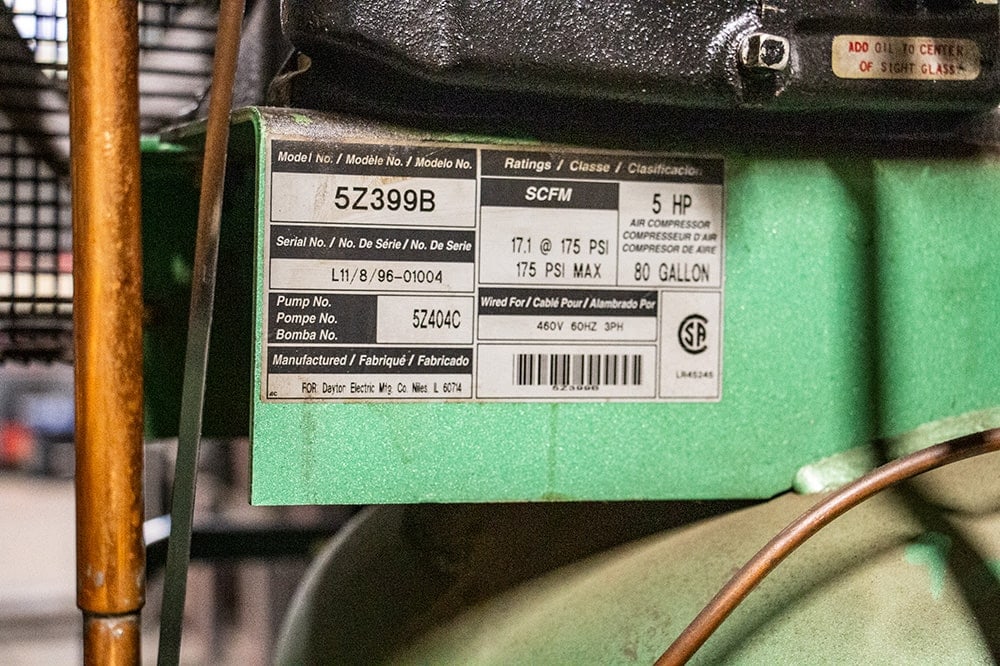

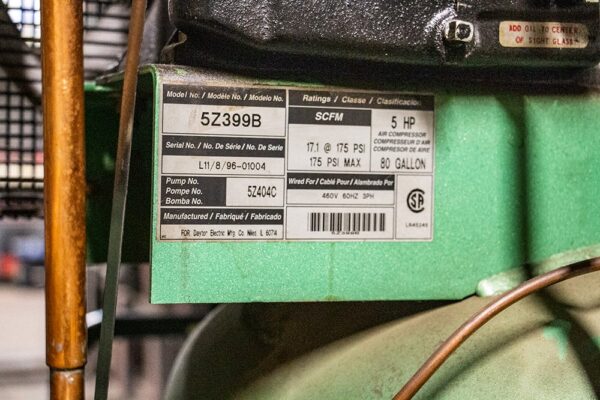

| Serial Number | L11/8/96-01004 |

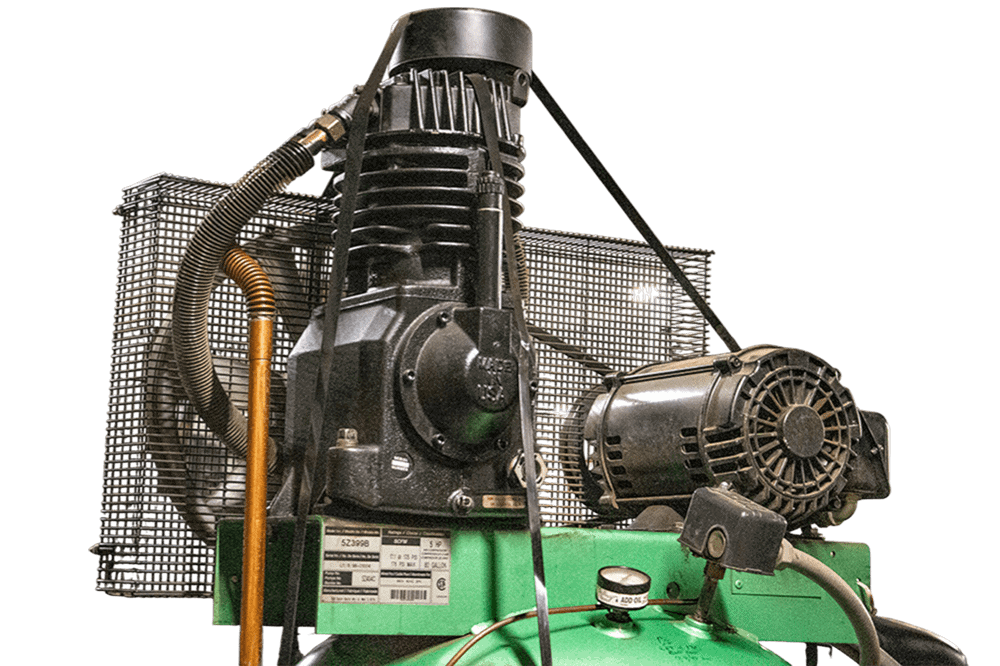

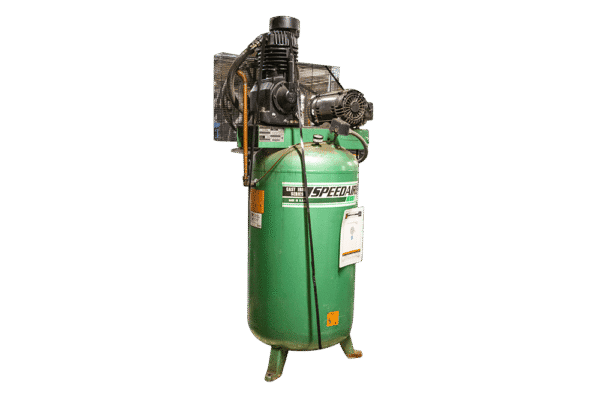

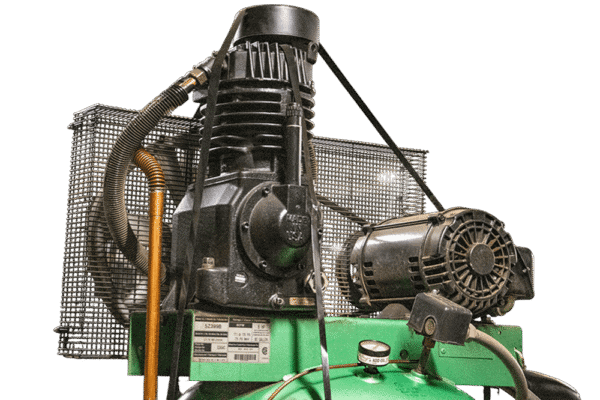

The SPEEDAIRE 5Z399B Vertical Splash-Lubricated Air Compressor is designed to provide continuous pressured air whenever you need it. The high capacity 80 gallon tank stores up to 175 PSI compressed air that can be integrated into your workflow for a variety of applications. Whether providing air for just one workstation, or setting up a multi-hose shop space, the SPEEDAIRE line of air compressors is designed to meet and exceed your expectations. The splash-lubricated design uses a dipper attached to a rod that scoops oil out of a reservoir, throwing droplets of oil onto the compressor’s internal components to lubricate and keep them cool during operation. With regular oil changes, this air compressor is guaranteed to provide long lasting, reliable service.
