| Brand | Advance Lifts |
|---|---|
| Color | Blue |
| Electrical Input Requirements | 480VAC, 3Ø, 60 Hz |
| Lowered Height | 5" |

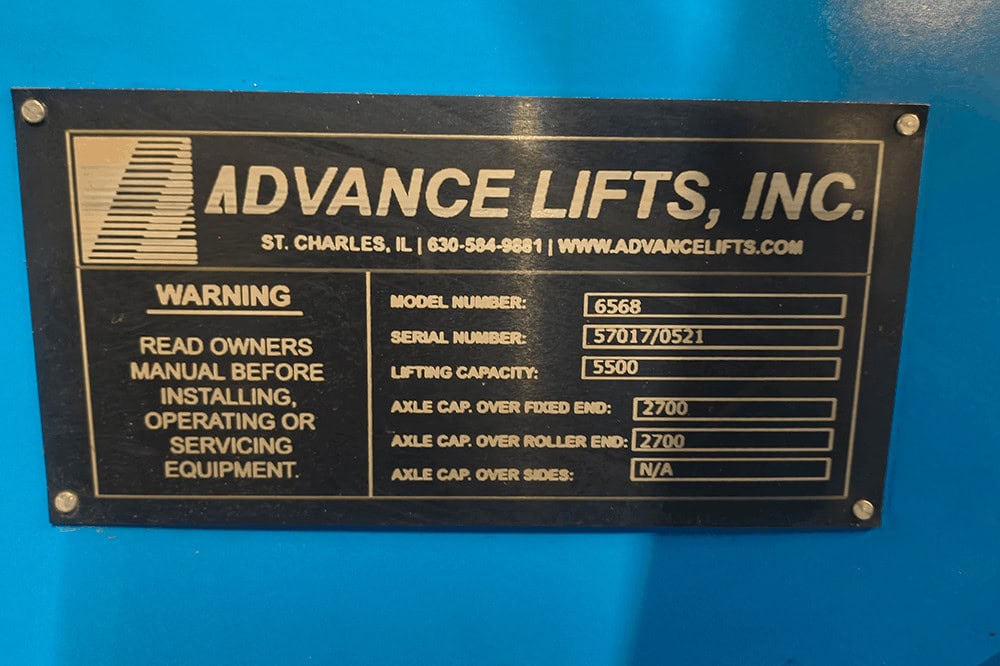

| Model | 6568 |
| Motor | 5 HP |
| Overall Dimensions | 80" x 144" w/ Ramp |
| Platform Size | 60" x 84" |
| Reference # | LE-20000 |
| Serial Number | 57017/0521 |
| Travel | 53" |
| Product Travel Speed | 13 FPM |
| Weight | 2,290 lbs. |

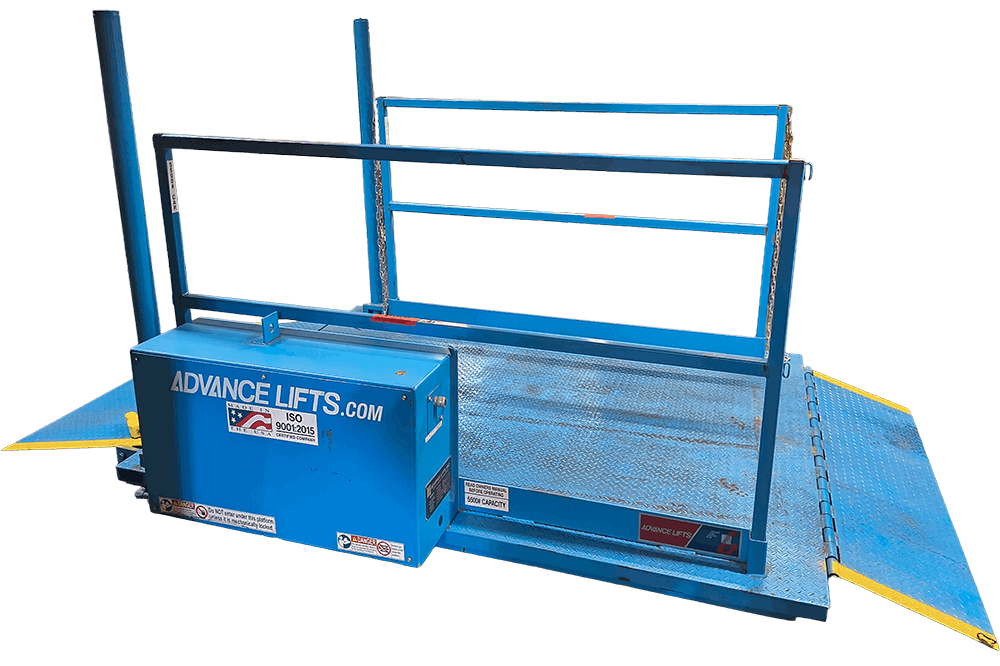

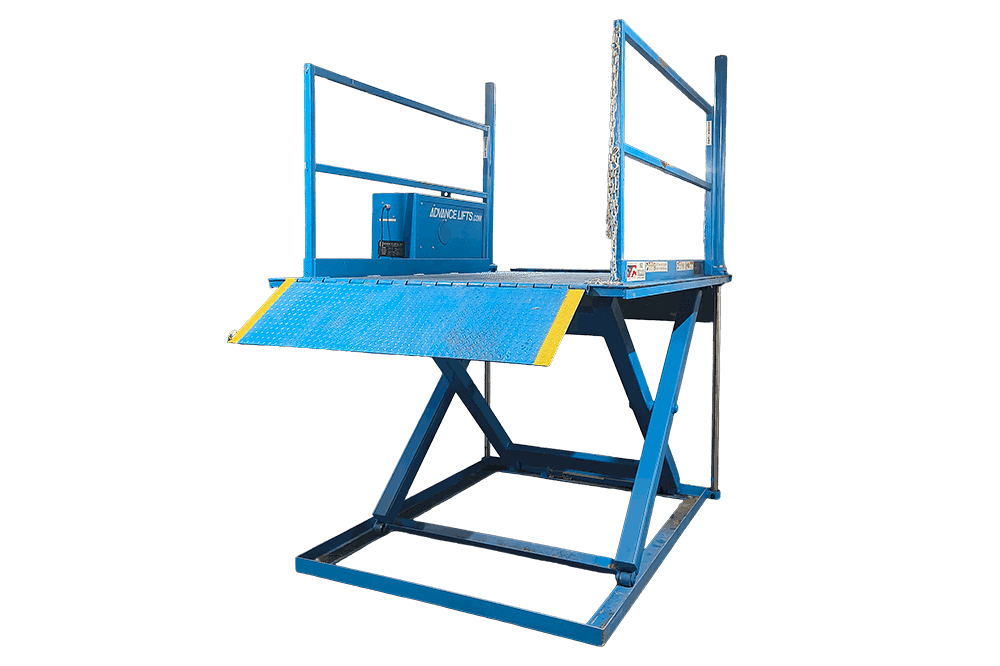

The used Advance Lifts 6568 Top of Ground Dock Lift provides a practical way to move palletized goods and carted materials between ground level and truck beds. Designed for facilities that need loading access without a recessed lift pit, this above-ground dock lift is well suited to warehouse receiving areas, distribution operations, and manufacturing facilities. Its surface-mounted design eliminates pit excavation, helping simplify installation where underground utilities, drainage concerns, or construction costs make a recessed system less practical. The unit anchors in position and connects to a suitable power receptacle, making it a useful option for businesses adding a loading point or updating an existing material handling area.
Designed for use with manual pallet jacks and four-wheeled carts, the 6568 helps keep loads on their handling equipment as they travel between elevations. A combination approach ramp provides access to the lowered platform, while the hinged bridge creates a transfer path between the raised lift and the truck bed. The bridge’s pull-back chain gives operators a convenient way to reposition it during loading and unloading. Together, these features help reduce the need to break down palletized shipments or move individual items by hand, supporting a more organized workflow for incoming deliveries and outbound freight.

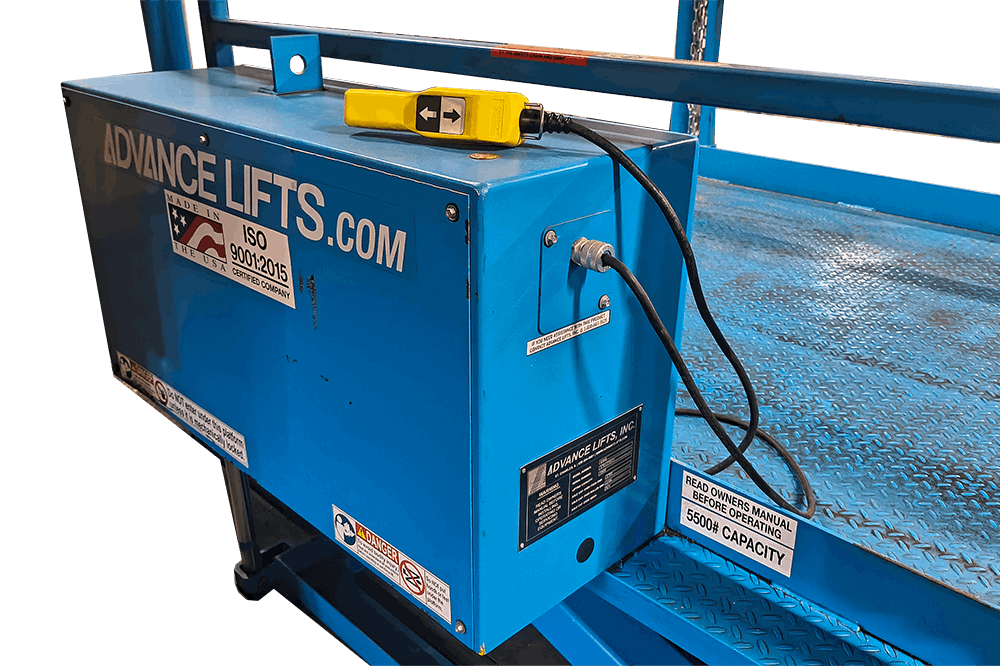

The hydraulic lifting system uses machine-grade cylinders with internal mechanical stops, along with double-wire-braid pressure hoses and JIC fittings for durable hydraulic connections. The model’s factory design also includes UL-approved electrical controller assemblies and a finishing process with phosphoric-acid cleaning, full priming, and baked enamel to help protect its surfaces. For businesses shopping for used loading dock equipment, the Advance Lifts 6568 combines pit-free installation with practical features for routine freight handling. Whether you are expanding receiving operations or replacing an older dock lift, this used hydraulic dock lift offers ground-to-truck transfer capability for facilities that handle palletized and carted loads.
