| Column Capacities Per Side All Capacities in lbs. Column Capacity * # Of Columns = Total System Capacity Per Side |
||||
|---|---|---|---|---|
| Column Height | 36" Arms | 48" Arms | 52" Arms | 60" Arms |
| 96" | 9,500 | 7,250 | 6,750 | 6,000 |
| 144" | 8,500 | 6,750 | 6,250 | 5,500 |
| 192" | 7,250 | 6,000 | 5,500 | 5,000 |

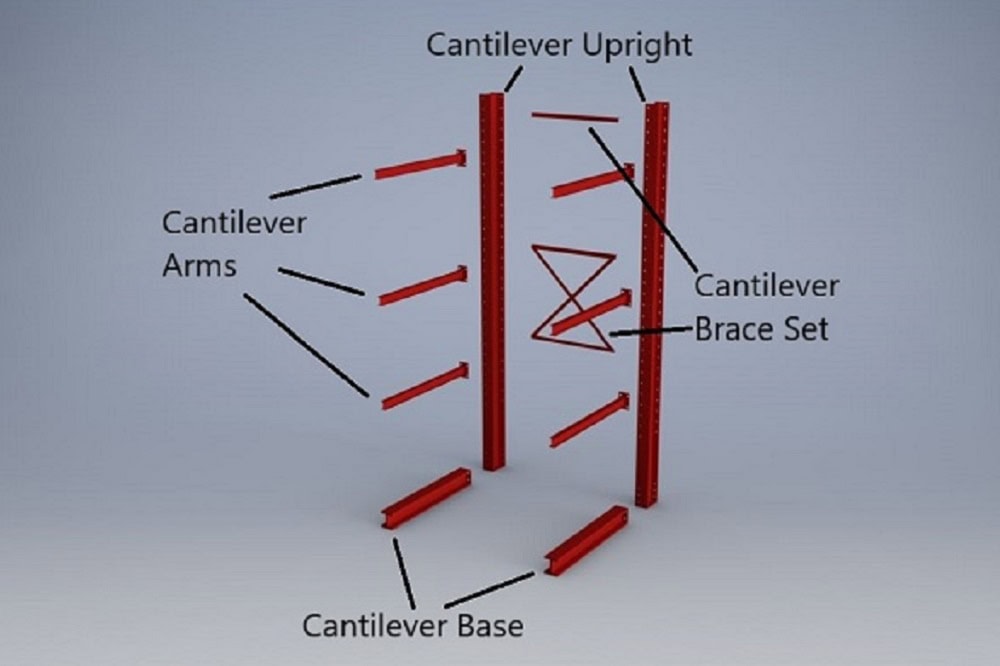

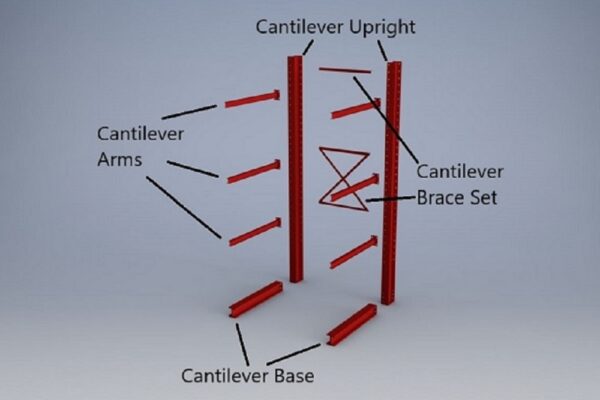

| Cantilever Upright Sizes | 78", 101", 148", 163", 172", and 181" Tall |
|---|---|
| Cantilever Arm Sizes | 36", 48" and 60" Long |
| Cantilever Base Sizes | 36", 48" and 60" Long |
| Cantilever Brace Set Sizes | 48" to 84" Wide |
| SKU | Description | Component | Width | Length | Height | Capacity | Item Price | Quantity |
|---|---|---|---|---|---|---|---|---|
| CHB36 | Cantilever Rack Horizontal Braces - 36" | Cantilever Horizontal Braces | 36" | REQUEST A QUOTE | ||||
| CHB48 | Cantilever Rack Horizontal Braces - 48" | Cantilever Horizontal Braces | 48" | REQUEST A QUOTE | ||||
| CHB60 | Cantilever Rack Horizontal Braces - 60" | Cantilever Horizontal Braces | 60" | REQUEST A QUOTE | ||||
| CHB72 | Cantilever Rack Horizontal Braces - 72" | Cantilever Horizontal Braces | 72" | REQUEST A QUOTE | ||||
| CHB84 | Cantilever Rack Horizontal Braces - 84" | Cantilever Horizontal Braces | 84" | REQUEST A QUOTE | ||||
| CHB96 | Cantilever Rack Horizontal Braces - 96" | Cantilever Horizontal Braces | 96" | REQUEST A QUOTE | ||||
| CXB36 | Cantilever Rack X-Braces - 36" | Cantilever X-Braces | 36" | REQUEST A QUOTE | ||||
| CXB48 | Cantilever Rack X-Braces - 48" | Cantilever X-Braces | 48" | REQUEST A QUOTE | ||||
| CXB60 | Cantilever Rack X-Braces - 60" | Cantilever X-Braces | 60" | REQUEST A QUOTE | ||||
| CXB72 | Cantilever Rack X-Braces - 72" | Cantilever X-Braces | 72" | REQUEST A QUOTE | ||||
| CXB84 | Cantilever Rack X-Braces - 84" | Cantilever X-Braces | 84" | REQUEST A QUOTE | ||||
| CXB96 | Cantilever Rack X-Braces - 96" | Cantilever X-Braces | 96" | REQUEST A QUOTE | ||||
| MDB36 | New Medium Duty Cantilever Bases - 36"L | Cantilever Bases | 36" | REQUEST A QUOTE | ||||
| CR-0173 | New Medium Duty Cantilever Bases - 48"L | Cantilever Bases | 48" | REQUEST A QUOTE | ||||
| MDB52 | New Medium Duty Cantilever Bases - 52"L | Cantilever Bases | 52" | REQUEST A QUOTE | ||||
| MDB60 | New Medium Duty Cantilever Bases - 60"L | Cantilever Bases | 60" | REQUEST A QUOTE | ||||
| CR-0171 | New Medium Duty Cantilever Columns - 144"H | Cantilever Columns | 144" | See Chart | REQUEST A QUOTE | |||
| CR-0170 | New Medium Duty Cantilever Columns - 192"H | Cantilever Columns | 192" | Call or Request Quote | REQUEST A QUOTE | |||
| CR-0172 | New Medium Duty Cantilever Columns - 96"H | Cantilever Columns | 96" | See Chart | REQUEST A QUOTE | |||
| MDARM-36-1000 | Used Cantilever Arms - 1,000 lbs @ 36" | Cantilever Arms | 36" | 1,000 lbs. | REQUEST A QUOTE | |||
| MDARM-48-1000 | Used Cantilever Arms - 1,000 lbs @ 48" | Cantilever Arms | 48" | 1,000 lbs. | REQUEST A QUOTE | |||
| MDARM-52-1000 | Used Cantilever Arms - 1,000 lbs @ 52" | Cantilever Arms | 52" | 1,000 lbs. | REQUEST A QUOTE | |||
| MDARM-60-1000 | Used Cantilever Arms - 1,000 lbs @ 60" | Cantilever Arms | 60" | 1,000 lbs. | REQUEST A QUOTE | |||
| MDARM-48-1250 | Used Cantilever Arms - 1,250 lbs @ 48" | Cantilever Arms | 48" | 1,250 lbs. | REQUEST A QUOTE | |||
| MDARM-52-1250 | Used Cantilever Arms - 1,250 lbs @ 52" | Cantilever Arms | 52" | 1,250 lbs. | REQUEST A QUOTE | |||
| MDARM-60-1250 | Used Cantilever Arms - 1,250 lbs @ 60" | Cantilever Arms | 60" | 1,250 lbs. | REQUEST A QUOTE | |||
| MDARM-36-1500 | Used Cantilever Arms - 1,500 lbs @ 36" | Cantilever Arms | 36" | 1,500 lbs. | REQUEST A QUOTE | |||
| MDARM-48-1500 | Used Cantilever Arms - 1,500 lbs @ 48" | Cantilever Arms | 48" | 1,500 lbs. | REQUEST A QUOTE | |||
| MDARM-52-1500 | Used Cantilever Arms - 1,500 lbs @ 52" | Cantilever Arms | 52" | 1,500 lbs. | REQUEST A QUOTE | |||
| MDARM-60-1500 | Used Cantilever Arms - 1,500 lbs @ 60" | Cantilever Arms | 60" | 1,500 lbs. | REQUEST A QUOTE | |||
| MDARM-36-1750 | Used Cantilever Arms - 1,750 lbs @ 36" | Cantilever Arms | 36" | 1,750 lbs. | REQUEST A QUOTE | |||
| MDARM-52-1750 | Used Cantilever Arms - 1,750 lbs @ 52" | Cantilever Arms | 52" | 1,750 lbs. | REQUEST A QUOTE | |||
| MDARM-60-1750 | Used Cantilever Arms - 1,750 lbs @ 60" | Cantilever Arms | 60" | 1,750 lbs. | REQUEST A QUOTE | |||
| MDARM-36-2000 | Used Cantilever Arms - 2,000 lbs @ 36" | Cantilever Arms | 36" | 2,000 lbs. | REQUEST A QUOTE | |||
| MDARM-48-2000 | Used Cantilever Arms - 2,000 lbs @ 48" | Cantilever Arms | 48" | 2,000 lbs. | REQUEST A QUOTE | |||
| MDARM-52-2000 | Used Cantilever Arms - 2,000 lbs @ 52" | Cantilever Arms | 52" | 2,000 lbs. | REQUEST A QUOTE | |||
| MDARM-60-2000 | Used Cantilever Arms - 2,000 lbs @ 60" | Cantilever Arms | 60" | 2,000 lbs. | REQUEST A QUOTE | |||
| MDARM-36-2250 | Used Cantilever Arms - 2,250 lbs @ 36" | Cantilever Arms | 36" | 2,250 lbs. | REQUEST A QUOTE | |||
| MDARM-48-2250 | Used Cantilever Arms - 2,250 lbs @ 48" | Cantilever Arms | 48" | 2,250 lbs. | REQUEST A QUOTE | |||
| MDARM-52-2250 | Used Cantilever Arms - 2,250 lbs @ 52" | Cantilever Arms | 52" | 2,250 lbs. | REQUEST A QUOTE | |||
| MDARM-36-2500 | Used Cantilever Arms - 2,500 lbs @ 36" | Cantilever Arms | 36" | 2,500 lbs. | REQUEST A QUOTE | |||
| MDARM-48-2500 | Used Cantilever Arms - 2,500 lbs @ 48" | Cantilever Arms | 48" | 2,500 lbs. | REQUEST A QUOTE | |||
| MDARM-60-2500 | Used Cantilever Arms - 2,500 lbs @ 60" | Cantilever Arms | 60" | 2,500 lbs. | REQUEST A QUOTE | |||
| MDARM-48-3000 | Used Cantilever Arms - 3,000 lbs @ 48" | Cantilever Arms | 48" | 3,000 lbs. | REQUEST A QUOTE | |||
| MDARM-52-3000 | Used Cantilever Arms - 3,000 lbs @ 52" | Cantilever Arms | 52" | 3,000 lbs. | REQUEST A QUOTE | |||
| MDARM-48-3250 | Used Cantilever Arms - 3,250 lbs @ 48" | Cantilever Arms | 48" | 3,250 lbs | REQUEST A QUOTE | |||
| MDARM-36-3500 | Used Cantilever Arms - 3,500 lbs @ 36" | Cantilever Arms | 36" | 3,500 lbs. | REQUEST A QUOTE | |||
| MDARM-36-4300 | Used Cantilever Arms - 4,300 lbs @ 36" | Cantilever Arms | 36" | 4,300 lbs. | REQUEST A QUOTE | |||
| MDARM-60-500 | Used Cantilever Arms - 500 lbs @ 60" | Cantilever Arms | 60" | 500 lbs | REQUEST A QUOTE | |||
| MDARM-52-700 | Used Cantilever Arms - 700 lbs @ 52" | Cantilever Arms | 52" | 700 lbs | REQUEST A QUOTE | |||
| MDARM-48-750 | Used Cantilever Arms - 750 lbs @ 48" | Cantilever Arms | 48" | 750 lbs. | REQUEST A QUOTE | |||
| MDARM-52-750 | Used Cantilever Arms - 750 lbs @ 52" | Cantilever Arms | 52" | 750 lbs. | REQUEST A QUOTE |

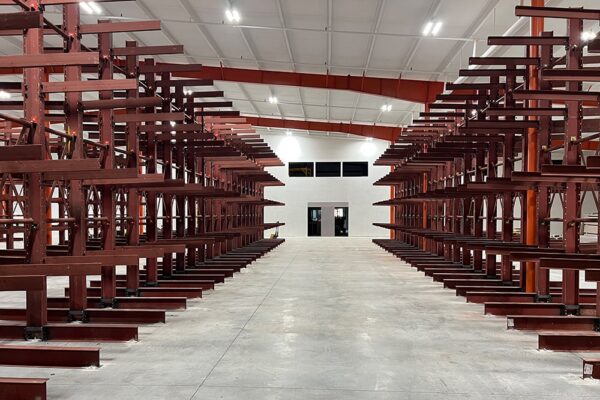

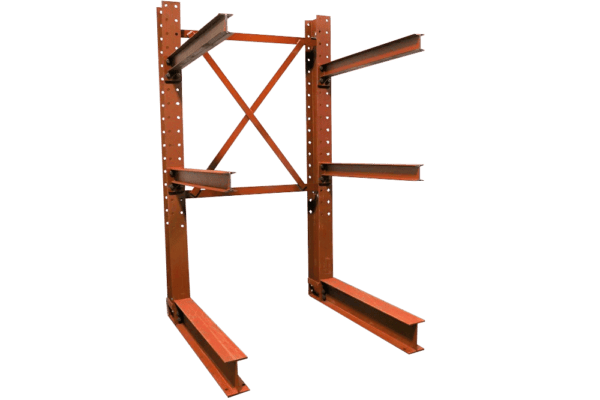

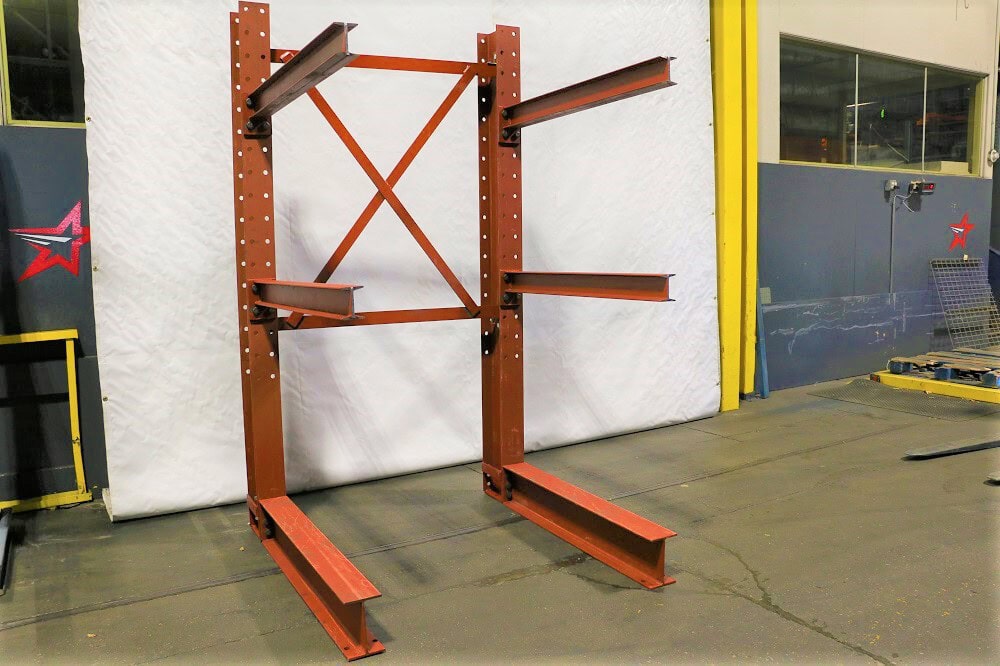

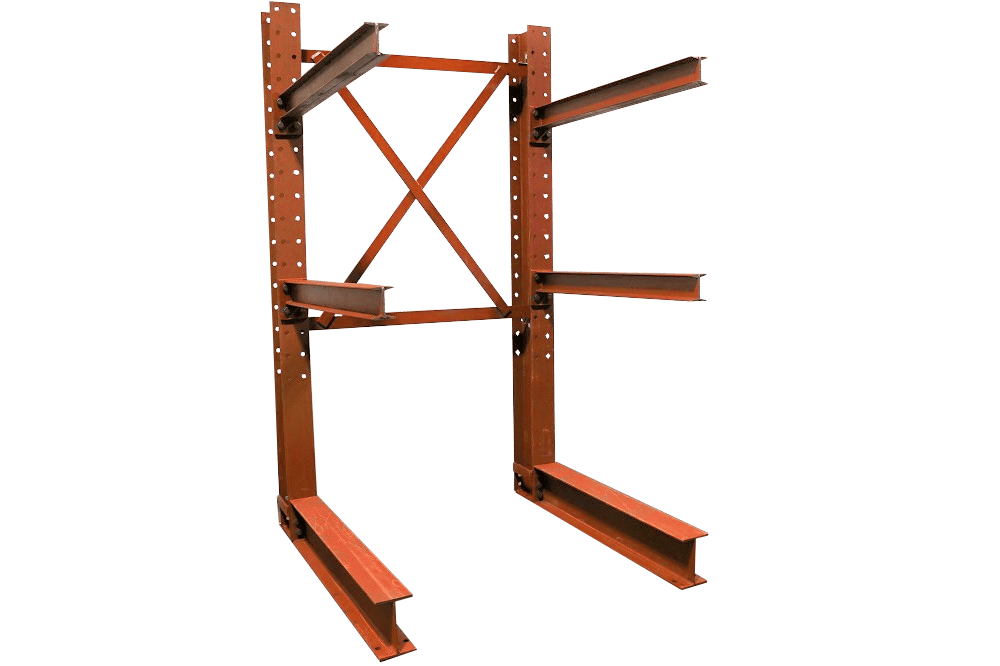

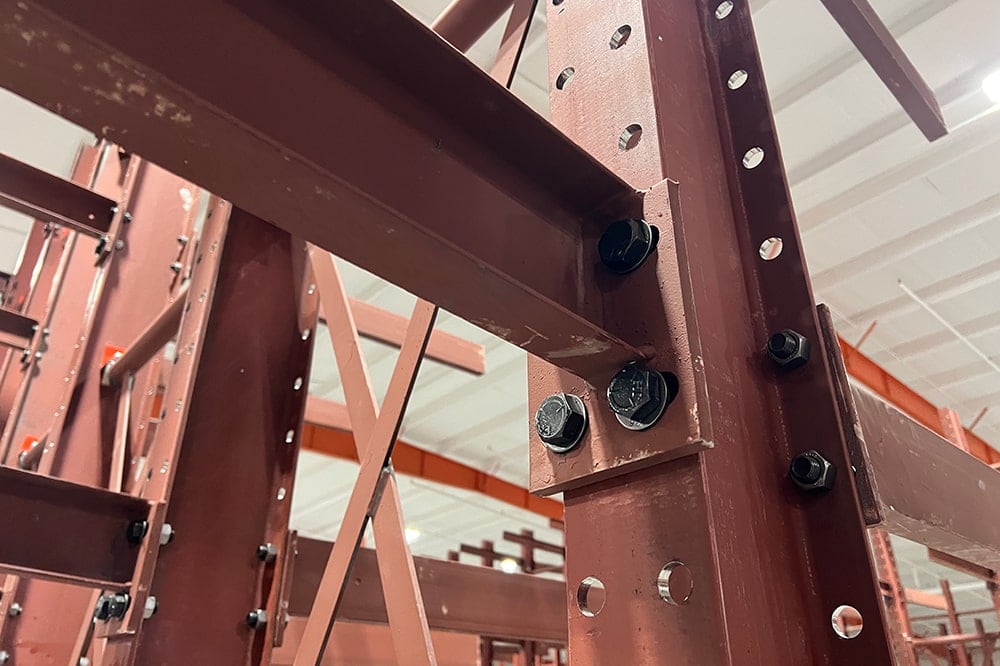

Medium Duty Cantilever Rack is our mid-range line of Cantilever Racking systems, offering lower capacity limits at a more affordable price point. Constructed from structural I-Beam material, you will find the same durability and reliability you would expect from our other structural cantilever rack options, with each column (or upright) capable of handling loads of various weights in certain configurations. The continuous, uninterrupted design of a cantilever rack system makes it the ideal choice for storing long items that may not fit very well on a traditional pallet rack, such as pipes, furniture, and lumber.
At American Surplus, we have been designing cantilever rack systems for over 30 years, providing quality, affordable solutions to our customers big and small nationwide. Drawing on our expertise, we have designed our Medium Duty Cantilever Rack Kits to provide the years of dedicated service you would expect, but at a fraction of the cost. Our medium duty cantilever rack systems are built from 100% used material, thoroughly refurbished by our production team. Our process ensures that your cantilever rack system stands the test of time while costing up to 60% less than comparable new systems.
In addition to savings, American Surplus offers unbeatable service when you Request a Quote. From concept to completion, our experienced sales team, CAD Specialist, and production crew have the skills to help design the perfect cantilever rack system for your application. To learn more and start designing your cantilever rack system, Request a fast, free quote online or call our sales team at (800) 876-3736 today!
We can’t list our entire inventory online, if you do not see what you are looking for, just ask! Quantity discounts available on used cantilever rack 40-60% off the price of new. Call 800-876-3736 for additional information & a free quote. American Surplus will provide a quote on new equipment if used is unavailable. Nationwide shipping is available. Price and product availability subject to change without notice. Inventory is subject to prior sale.
