| SKU | Description | Brand | Electrical Input Reqs | Film Delivery System | Film Pre Stretch | Film Tail System | Includes R Connect | Stretch Wrapper Wrap Height | Turntable | Weight | Capacity | Item Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ROBORAMPEXT | 24" Ramp Extension for RoboRamp* | REQUEST A QUOTE | |||||||||||
| MASTERPLAT110 | MasterPlat Semi-Automatic Stretch Wrapper - 110" | RoboPac | 120V, 1Ø, 20A, 60Hz | Power Gear Stretch | 2.5 | None | No | 110" | 65" Diameter | 1,395 lbs. | 4,400 lbs. | REQUEST A QUOTE | |
| MASTERPLAT86 | MasterPlat Semi-Automatic Stretch Wrapper - 86" | RoboPac | 120V, 1Ø, 20A, 60Hz | Power Gear Stretch | 2.5 | None | No | 86" | 65" Diameter | 1,395 lbs. | 4,400 lbs. | REQUEST A QUOTE | |
| ROBOINSTALL | RoboPac Stretch Wrapper Installation & Training Service | REQUEST A QUOTE | |||||||||||
| ROBORAMP | RoboRamp for 65" Turntables | RoboPac | REQUEST A QUOTE |
*ROBORAMPEXT must be selected when loading with powered walkies or dual walkies. Option not compatible with scale package.

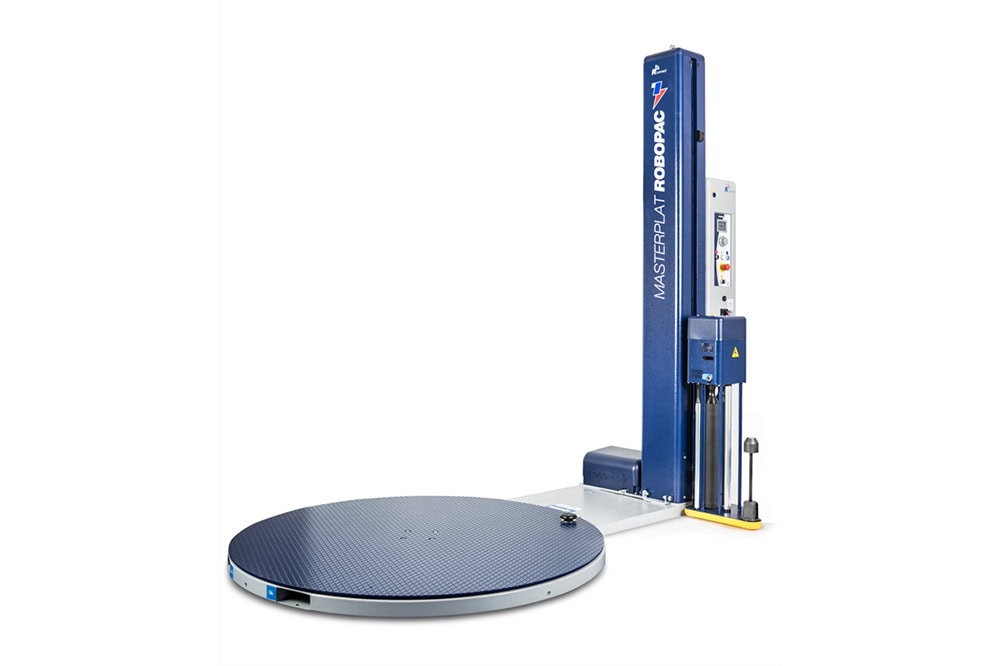

MASTERPLAT Semi-Automatic Stretch Wrapper Machine are easy to install and operate. This wrapper comes with productivity improving standards like a Self-Learning Wrap Program. The turntable has a 4,400 lb. capacity with a production rate up to 30 loads per hour.
Equipped with standard safety features like a Roll Carriage Anti Fall Device & Roll Carriage Safety Stop, and a 65″ diameter diamond plated steel turntable that stops your load from shifting during the wrapping process. It accommodates the standard 40″ X 48″ pallet decreasing the threat of product damage or worker injury from overhang.
American Surplus is committed to deliver our customers premium semi-automatic stretch wrapper machines. Therefore, we’ve partnered with ROBOPAC to provide the quality products our customers deserve. For more information or to request a quote call one of our sales associates today!
| Specification | MasterPlat 86″ | MasterPlat 110″ |
|---|---|---|
| Performance | ||
| Production Speed | Up to 30 LPH | |
| Turntable Speed | 5-12 RPM | |
| Load Handling | ||
| Turntable Size | 65″ Diameter | |
| Maximum Load Height | 86″ | 110″ |
| Maximum Load Weight | 4,400 lbs. | |
| Film Delivery System | Power Gear Stretch | |
| Standard Pre-Stretch | 250% | |
| Force-to-Load | Variable 0%-100% | |
| Core Compensation | Load Cell | |
| Roll Carriage Speed | Variable Up & Down | |
| Standard Film Width | 20″ | |
| Load Height Detection | Infrared Photo Eye (Dark Colors) | |
| Safety Features | ||
| Roll Carriage Safety Stop | Standard | |
| UL & CE Compliant | Yes | |
| Anti-Fall Device | Standard | |
| Lock-Out Compliant | Yes | |
| Additional Features | ||
| Top Sheet Wrap | Standard | |
| Banding | Standard | |
| Forklift Portable | Front & Rear | |
| Machine Dimensions | ||
| Approx. Shipping Weight | 1,395 lbs. | |
| Approx. Shipping Size | 126″L x 89″W x 28″H | |
| Service Requirements | ||
| Electric | 120V, 1Ø, 20A, 60Hz | |
| NEMA 13 Enclosure | Standard | |
| Warranty | 3 Year | |
