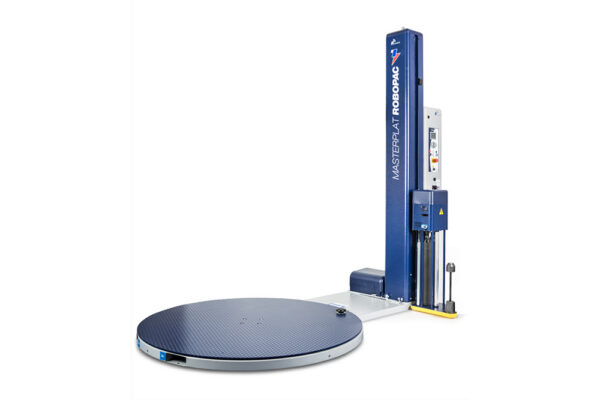

Factory Demo RoboPac MasterPlat Stretch Wrapper

MASTERPLAT Manufacturer Brochure

Factory Demo RoboPac MasterPlat Stretch Wrapper

ASI Price:

Call or Request Quote

MASTERPLAT Semi-Automatic Stretch Wrapper Machine
Up to 30-loads per hour
Fixed film pre stretch at 250%
Power gear stretch film delivery
R-Connect Ready
Capacity: 4,400 lbs.
Turntable is supported by 28 heavy-duty casters
Turntable speed: 5-12 rpm
Eliminate downtime by troubleshooting your machine
Remote machine monitoring and film consumption tracking

Performance Features:

R-Connect, available (not included) for this machine was developed to provide usage and performance data via the cloud puts performance monitoring & optimization
Control panel combines the Master Jog Dial with graphic display with intuitive icons to make it simple to set up and to select the correct wrapping parameters for each of your loads.
The PGS film carriage is fixed gear 250% power pre-stretch and the force to load (tension) is controlled by a strain gauge, adjusted on the control panel.
Low thickness basement compatible with the Masterplat and Rotoplat range. Manage an easy loading with manual transpallet.

Additional information

*ROBORAMPEXT must be selected when loading with powered walkies or dual walkies. Option not compatible with scale package.

MASTERPLAT Semi-Automatic Stretch Wrapper Machine are easy to install and operate. This wrapper comes with productivity improving standards like a Self-Learning Wrap Program. The turntable has a 4,400 lb. capacity with a production rate up to 30 loads per hour.Equipped with standard safety features like a Roll Carriage Anti Fall Device & Roll Carriage Safety Stop, and a 65″ diameter diamond plated steel turntable that stops your load from shifting during the wrapping process. It accommodates the standard 40″ X 48″ pallet decreasing the threat of product damage or worker injury from overhang.

American Surplus is committed to deliver our customers premium semi-automatic stretch wrapper machines. Therefore, we’ve partnered with ROBOPAC to provide the quality products our customers deserve. For more information or to request a quote call one of our sales associates today!

Specification
*Performance*
Production Speed	Up to 30 LPH
Turntable Speed	5-12 RPM
*Load Handling*
Turntable Size	65″ Diameter
Maximum Load Height	110″
Maximum Load Weight	4,400 lbs.
*Film Delivery System*	Power Gear Stretch
Standard Pre-Stretch	250%
Force-to-Load	Variable 0%-100%
Core Compensation	Load Cell
Roll Carriage Speed	Variable Up & Down
Standard Film Width	20″
Load Height Detection	Infrared Photo Eye (Dark Colors)
*Safety Features*
Roll Carriage Safety Stop	Standard
UL & CE Compliant	Yes
Anti-Fall Device	Standard
Lock-Out Compliant	Yes
*Additional Features*
Top Sheet Wrap	Standard
Banding	Standard
Forklift Portable	Front & Rear
*Machine Dimensions*
Approx. Shipping Weight	1,395 lbs.
Approx. Shipping Size	126″L x 89″W x 28″H
*Service Requirements*
Electric	120V, 1Ø, 20A, 60Hz
NEMA 13 Enclosure	Standard
*Warranty*	3 Year
